LM11949/LM11910 Tapered Roller Bearing

0.7500 in Bore, 1.7810 in OD, 0.6550 in Cone Width, 0.4750 in Cup Width,Bearings LM11949/10 are Assemble with Cone & Cup ,and we have this bearings in stock ,pls contact with us now for free samples.

item no.:
LM11949/LM11910
lead time:
7 days
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

LM11949/LM11910 Tapered Roller Bearing Specification :

Bore:0.7500 in
OD:1.7810 in
Cone Width:0.6550 in
Cup Width:0.4750 in
bearing material: Chrome Steel
assembly type: Cone & Cup
cage material: Steel

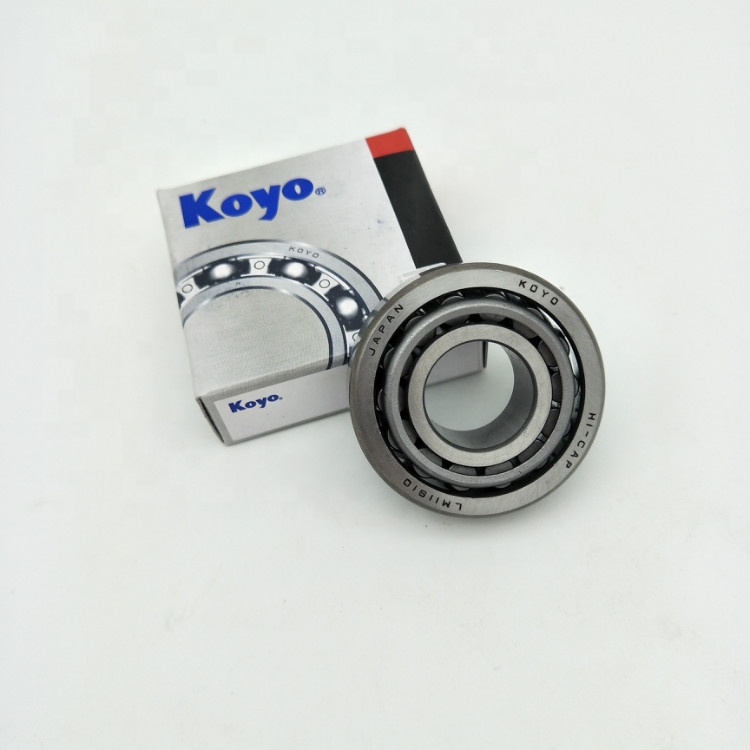

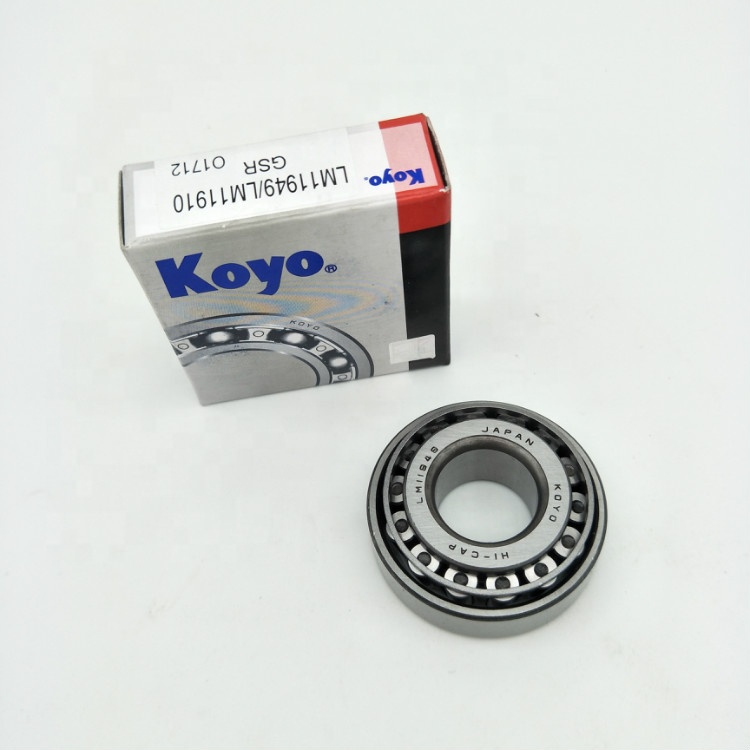

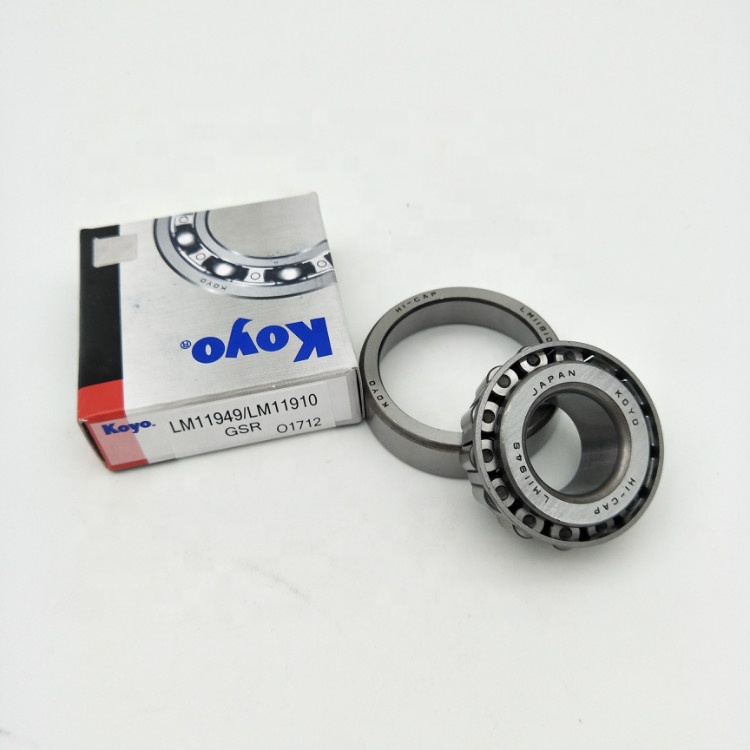

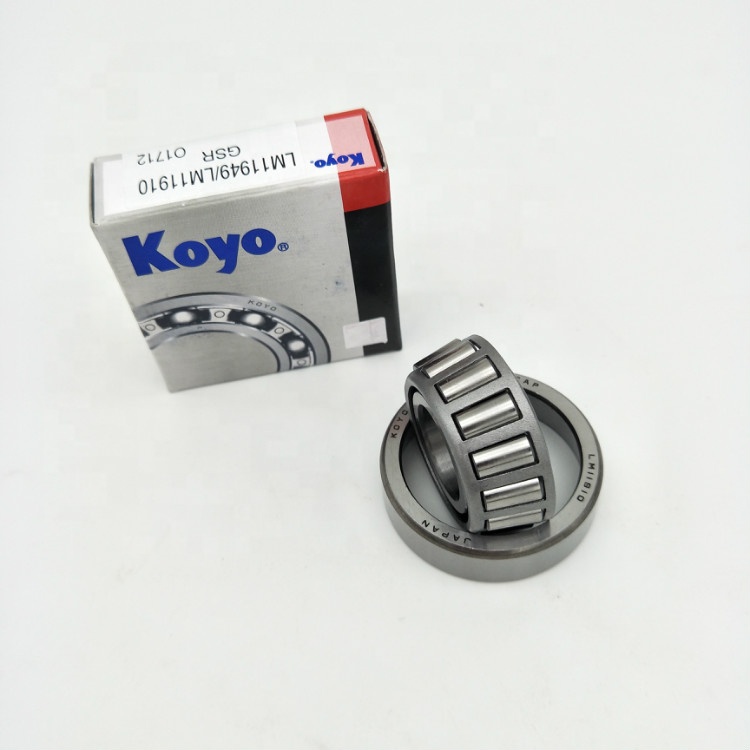

Bearing Pictures:

The Structure of Tapered Roller Bearing :

taper roller bearing

Taper Roller Bearing Application:

With high quality raw material ,taper roller bearing have widely applications ,such as :

Agriculture, Construction and Mining Equipment

Various Axle Systems

Conveyance Vehicles

Gear Box, Engine Motors, Reducers

Taper Roller Bearing Application

We can prodive different type of taper roller bearings ,if you are interested ,pls feel free to contact with me ,here are some KOYO bearing number for your reference:

Bearing No.	D	d	B	weight
09067/09195	19.05	49.225	18.034	0.1804
09081/09195	20.625	49.225	19.845	0.1555
LM11749/LM11710	17.462	39.878	13.843	0.083
LM11949/LM11910	19.05	45.237	15.494	0.125
M12649/M12610	21.43	50.005	17.526	0.174
LM12749/LM1270	21.43	45.237	15.494	0.118
LM12749/LM1270	22	45.237	15.494	0.116
LM12749/LM1271	22	45.975	15.494	0.121
14125A/14276	31.75	69.012	19.845	0.354
14137A/14276	34.925	69.012	19.845	0.331
14138A/14276	34.925	69.012	19.845	0.329
25877/25821	34.925	73.025	23.812	0.473
25880/25821	36.487	73.025	23.812	0.458
2785/2720	33.338	73.025	23.812	0.544

Taper roller bearing have widely application:

For more bearings ,pls contact with us free at info@bearings-factory.com
