 LV20/8 2RS V Groove Track Roller Bearing

new products
LV20/8 Bearing LV20/8 Bearing LV20/8 Bearing

LV20/8 2RS V Groove Track Roller Bearing

8mmx30mmx14mm LV20/8 Track Roller Bearing,we produce this bearings with Chrome steel Gcr15 or stainless steel ,free sample can be provide for you .

  • item no.:

    LV20/8

  • product orgin:

    China ,Shanghai

  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI

  • MOQ:

    100
contact us
products details

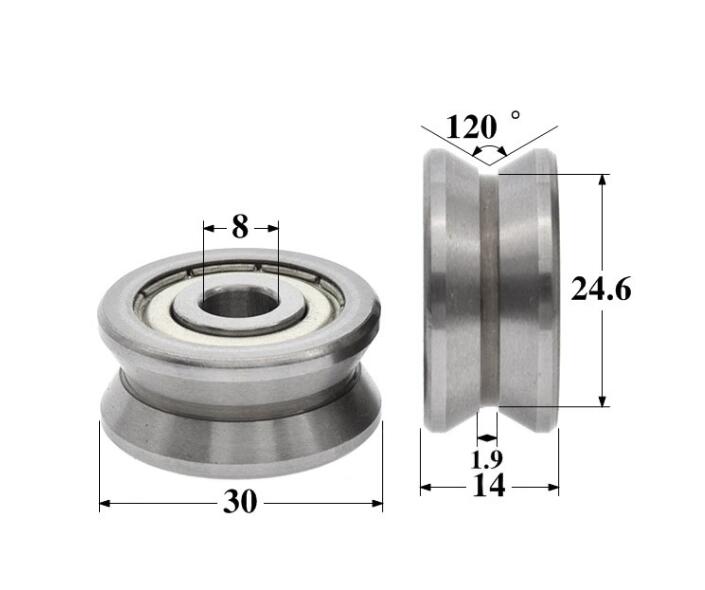

LV20/8ZZ  LV20/8-2RS V Groove Guide Roller Specification:


Model Numbe LV20/8ZZ
Dimension:  8mmx30mmx14mm
Structures  Double Row Ball Bearings
Our Rings  V Groove; 120 degree
Material: Chrome Steel /GCr15/ AISI420/AISI440
Quality: ABEC1 ABEC3
Vibration Level: V1;V2
Noise Level:  Z1;Z2
Clearance: C0 C3 C2 C5
Shields: Rubber seals ; Steel Shield
Packing:  Plastic Tube packing
Application: Linear guide machinery;  linear motion track rollers; guide railway

LV20 V Groove Bearing


Track Roller Bearings LV Series Bearing No.:

Track Roller No. Weight
≈(g) 		Dimensions (mm) Load Ratings
 dw  d   D b  C  A α rs Cw (KN)  Cow(KN)
LV 20/7 ZZ 17 10 7 22 11 11 14.5 120 0.3 3.78 2.05
LV 20/8 ZZ 49 10 8 30 14 14 18.1 120 0.3 5.13 2.67
LV 202-38 ZZ 87 10 15 38 17 17 22.25 120 0.5 8.47 5.37
LV 202-40 ZZ 110 10 15 40 18 18 22 120 0.5 8.47 5.37
LV 201 ZZ 130 20 12 41 20 20 28 120 0.3 8.47 5.37
LV 201-14.2RS 107 14 12 39.9 20.1 18 24 100 0.5 8.9 5
LV 202-41 ZZ 116 20 15 41 20 20 28 120 0.5 8.47 5.37
LV 203 ZZ 325 20 17 58 25 25 35 120 0.5 14.66 9.1
LV 204-57 ZZ 290 30 20 57 22 22 41 120 0.6 14.66 9.1
LV 204-58 ZZ 310 30 20 58 25 25 41 120 0.6 14.66 9.1


Track roller bearings



We also can Produce Various structure: WV,LV,V,LFR,LR,W Series

Sealed type: Z, ZZ, RS, 2RS, 2RS1, NPP, KDD, P, PP, N, NR

Material: GCr15,100Cr6,Chrome Steel,steel ,stainless steel

Model

Weight

Size (mm)




≈ (g)

dw

d

D

C

B

SG15

8

6

5

17

8

5.75

SG15-10

9

10

5

17

8

5.75

SG20

25

8

6

24

11

7.25

SG25

49

10

8

30

14

8.5

SG35

136

12

12

42

19

12.5

SG15N

8

6

5

17

8

5.75

SG20N

25

8

6

24

11

7.25

SG25N

49

10

8

30

14

8.5

SG35N

136

12

12

42

19

12.5

SG BEARINGS

Designation







A1

A2

Chamfer r/min



Weight



Bore

O.D.

Width





mm

Load





mm

mm

mm













D1

D

B

A1

A2

R/min

Cw(KN)

Cow(KN)

Kg

W1

4.763

19.56

7.87

7.9.

11.86

0.3

2.2

1

11

W1X

4.763

19.56

7.87

7.93

11.86

0.3

2.2

1

11

W2

9.525

30.73

11.1

12.7

18.24

0.3

4.9

2.5

38

W2X

9.525

30.73

11.1

12.7

18.24

0.3

4.9

2.5

38

W3

12

45.72

15.88

19.05

26.98

0.6

9.4

4.9

130

W3X

12

45.72

15.88

19.05

26.98

0.6

9.4

4.9

130

W4

15

59.94

19.05

25.4

34.93

1

14.8

8.2

280

W4X

15

59.94

19.05

25.4

34.93

1

14.8

8.2

280

RM1ZZ

4.763

19.56

7.87

7.9.

11.86

0.3

2.2

1

11

RM1 2RS

4.763

19.56

7.87

7.93

11.86

0.3

2.2

1

11

RM2ZZ

9.525

30.73

11.1

12.7

18.24

0.3

4.9

2.5

38

RM2 2RS

9.525

30.73

11.1

12.7

18.24

0.3

4.9

2.5

38

RM3ZZ

12

45.72

15.88

19.05

26.98

0.6

9.4

4.9

130

RM3 2RS

12

45.72

15.88

19.05

26.98

0.6

9.4

4.9

130

RM4ZZ

15

59.94

19.05

25.4

34.93

1

14.8

8.2

280

RM4 2RS

15

59.94

19.05

25.4

34.93

1

14.8

8.2

280

RM BEARING
