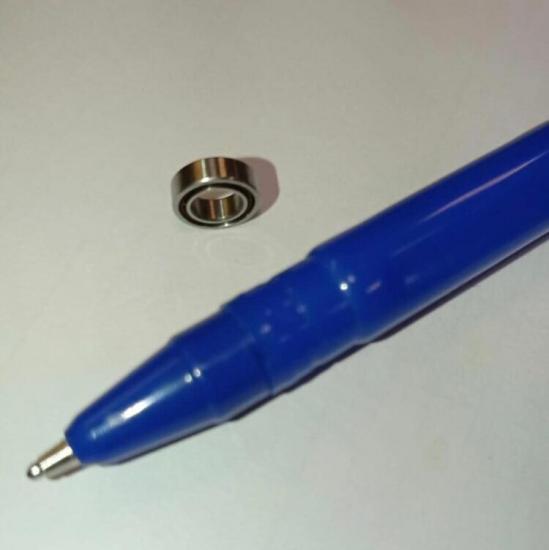

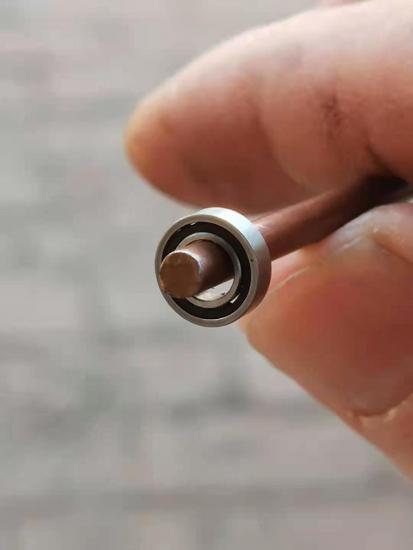

M-2 Angular Contact Ball Bearings

4.5*8.5*2.5mm M-2 Angular Contact Ball Bearings,we have bearings in stock now we can provide sample for you test in advance .

item no.:
5206
lead time:
7 days
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

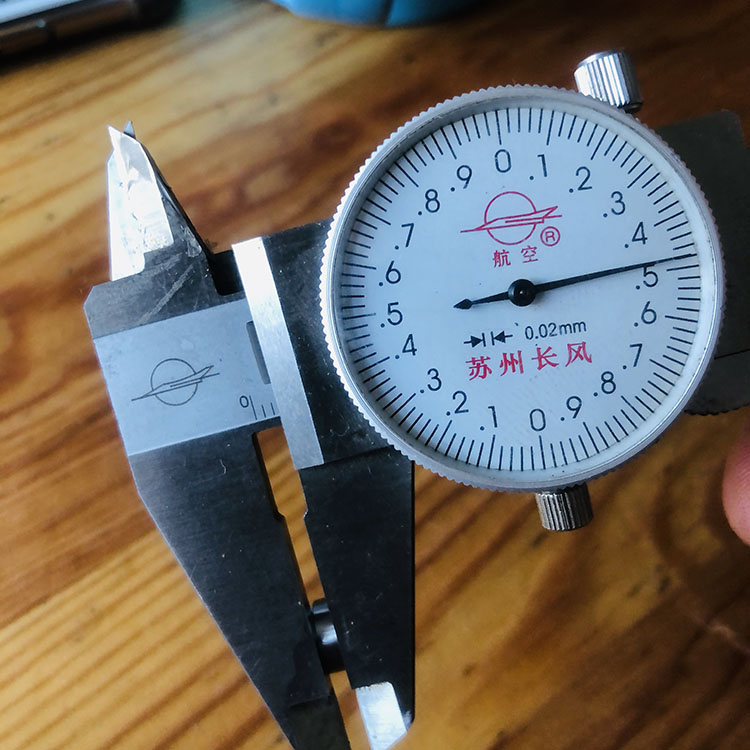

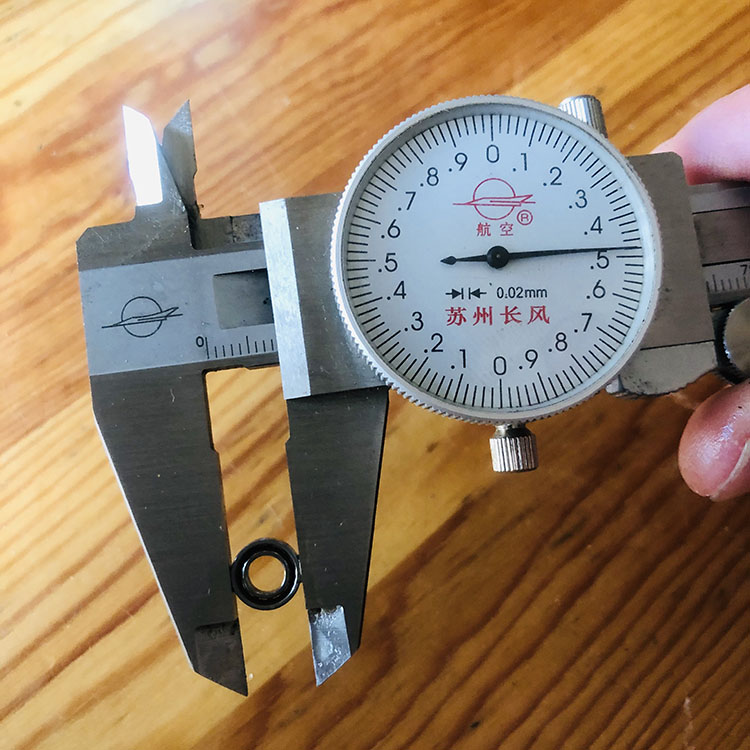

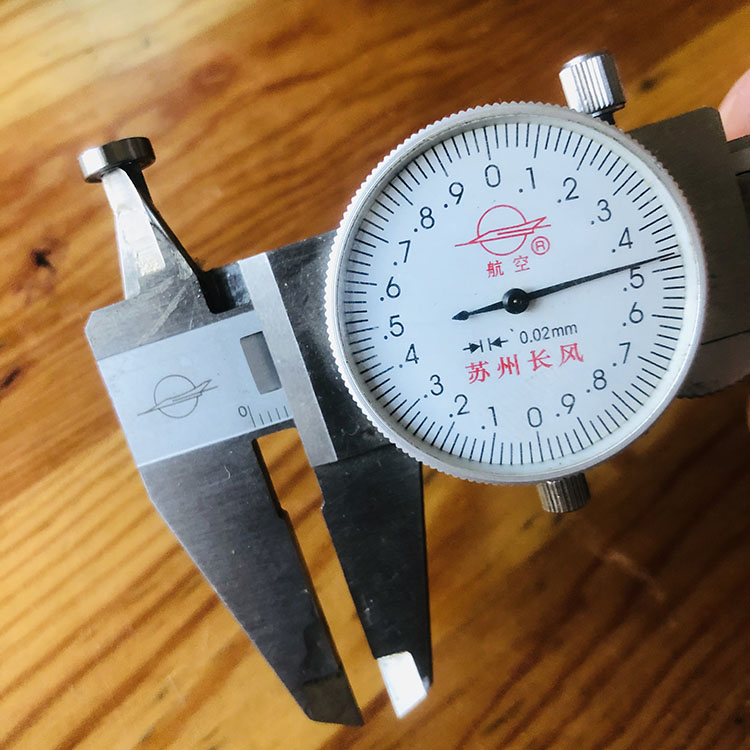

Dimension :

Inner diameter :4.5mm

Outer diameter : 8.5mm

Height:2.5mm

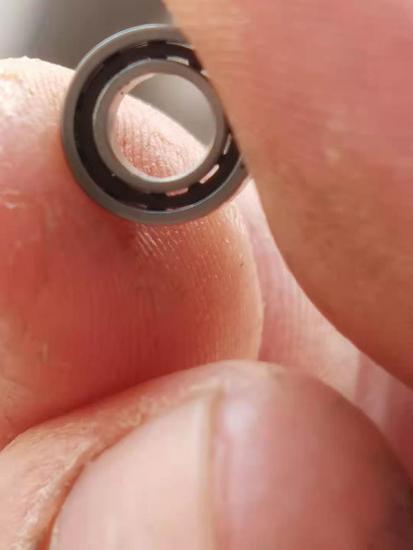

Material :Chrome steel Gcr15 + Phenolic cage

Angular Contact Bearings Introduction :

Suffix	Contact Angules or structures
A	30° contact angle
C	15° contact angle
AC	25° contact angle
B	40° contact angle
BER	25° contact angle
BNR	18° contact angle
TAC	60° contact angle
DB	Two bearings matched back-to-back
DF	Two bearings matched face-to-face
DT	Two bearings matched in tandem
GA	Bearing for universal matching. Two bearings arranged back-to-back or face-to-face will have a light preload before mounting
GB	Bearing for universal matching. Two bearings arranged back-to-back or face-to-face will have a moderate preload before mounting
GC	Bearing for universal matching. Two bearings arranged back-to-back or face-to-face will have a heavy preload before mounting

types of angular contact ball bearing
1	single row (open type)	70, 72, 73, 718, 719 Series
2	double row (open or sealed)	50, 52, 53, 54 series,
		32, 33 series
3	Four-point contact	QJ series

Angular Contact Ball Bearings Application:

Single row application: Machine tool spindles, high frequency motors, gas turbines, centrifugal separator, small car front wheels, differential pinion shaft etc.

Double row application: Roots blowers, air compressors, transmissions, printing machine, water pump, oil pump, cutting machines, reducers, prospecting machines, polishing machines, diesel engines, textile machinery, steel mills etc.

Miniature Angular Contact Ball Bearings NO.:

Bearing No.	Dimension (mm)
	d	D	B
725C	5	16	5
725A	5	16	5
706C	6	17	6
706A	6	17	6
726C	6	19	6
726A	6	19	6
707C	7	19	6
707A	7	19	6
708C	8	22	7
708A	8	22	7
728C	8	24	8
728A	8	24	8
7900C	10	22	6
7900A5	10	22	6
7901C	12	24	6
7901A5	12	24	6
7902C	15	28	7
7902A5	15	28	7
7903C	17	90	7
7903A5	17	90	7
7904C	20	37	9
7904A5	20	37	9
7905C	25	42	9
7905A5	25	42	9
