MTR Series Metal Roller End Cap

new products

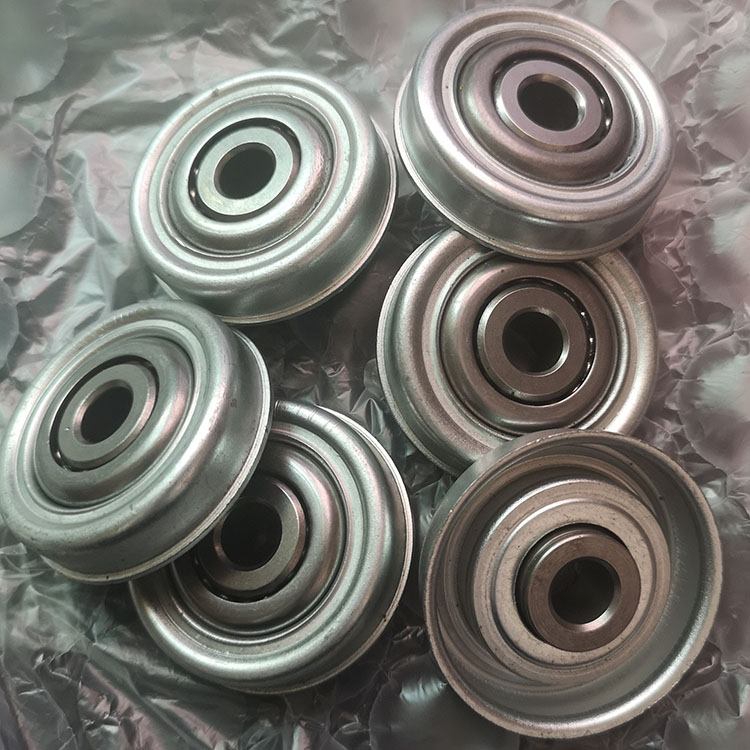

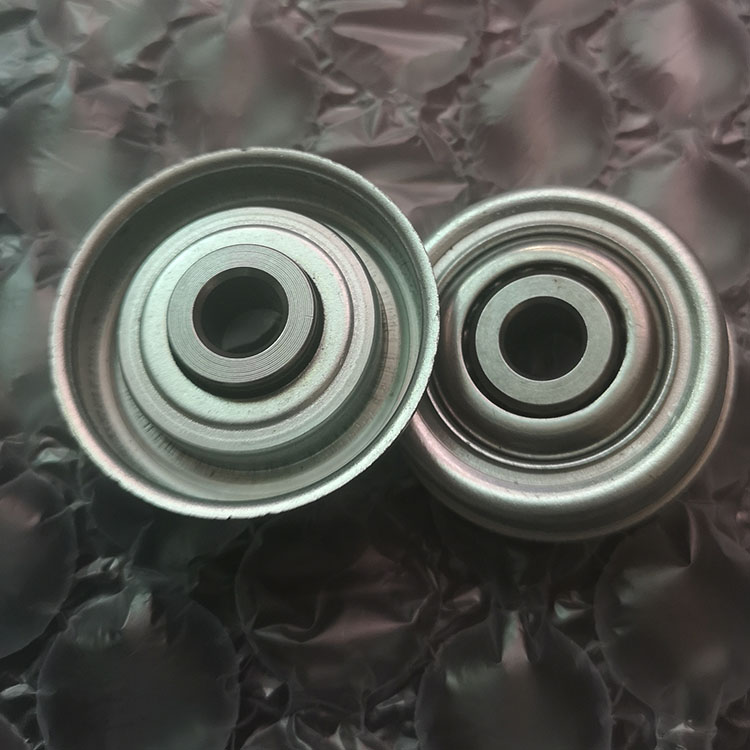

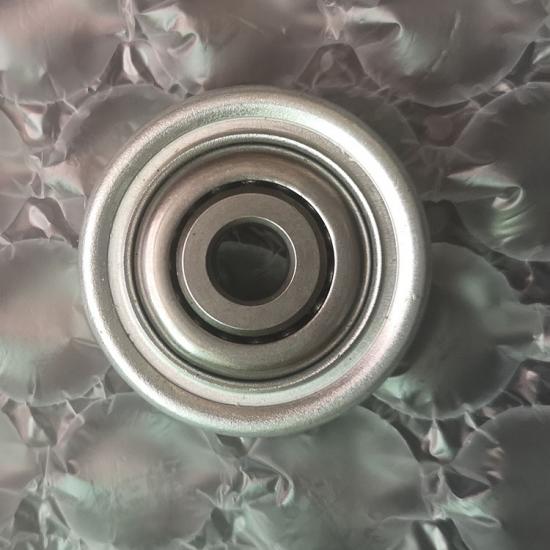

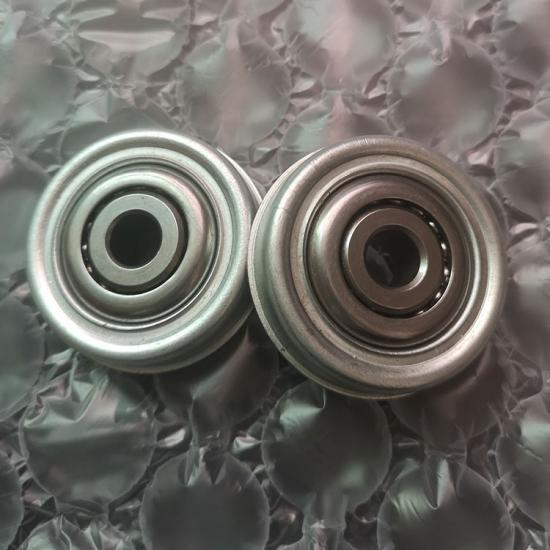

MTR Series Metal Roller End Cap

We can produce different MTR series conveyor bearings for you ,free sample can be provide for test before order .

  • item no.:

    MTR-30x1.5.16.10
  • lead time:

    7-30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • payment:

    30% TT in advance ,70% TT after finish produc
  • MOQ:

    10000
products details


MTR-30x1.5.16.10 Metal Roller Bearing Specification :



MTR-16 Metal Bearing



Housing material :steel with zinc plated

Bearing : RL-16

Bearing Sheel :steel,hardened

Inner Race: Steel ,hardened ,zinc plated

Ball cage:plastic

Ball :steel

MTR-16
Type Di±0.1 Da±0.2 Load Rating C
MTR-30*1.2.16 27.6 29.6 30
MTR-30*1.5.16 27.3 29.6 30


MTR Metal Roller Bearings
 MTR Conveyor Bearings

Some MTR Series Conveyor Bearings No.:


Part No. Dimension
D1 D d
MTR-40x1.5 37.3 39.5 8,10,12
MTR-40x2.0
36.3 39.5 8,10,12

MTR-48x1.5
45.3 47.5 10,12,15
MTR-50x1.5
47.3 49.5 10,12,15

MTR-50x2.0
46.3 49.5 10,12,15

MTR-60x1.5
57.3 59.5 12,15,20

MTR-60x2.0
56.3 59.5 10,12,15

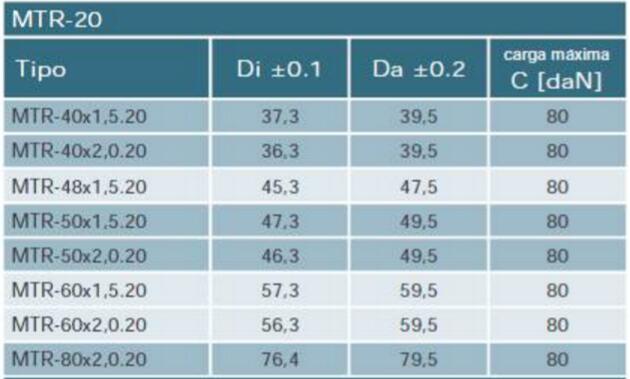

MTR-20 Series Bearings:


MTR-20 Press Bearing

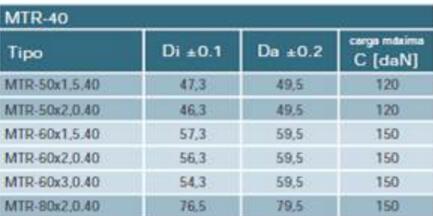

Conveyor Bearings MTR-40

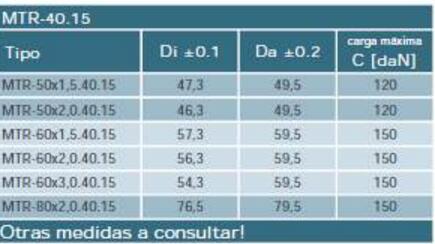

Metal Roller Bearings MTR-40.15

MTR-60x1.5.40.12
MTR-60x1.5.40.15
MTR-60x2.40.15
MTR-60x2.40.12
MTR-60x2.20.12
MTR-40x1.5.20.10
MTR-40x1.5.20.12
MTR-30x1.5.16.10
MTR-30x1.5.16.8
