We can produce different MTR series conveyor bearings for you ,free sample can be provide for test before order .
item no.:
MTR50x1.5.30-2.10lead time:
7-30 daysproduct orgin:
China ,Shanghaishipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAIpayment:
30% TT in advance ,70% TT after finish producMOQ:

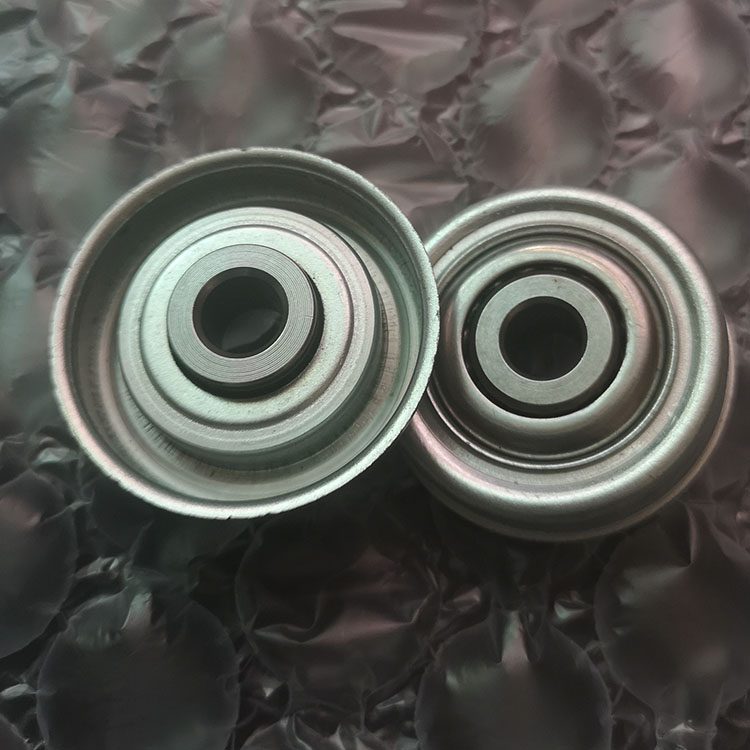

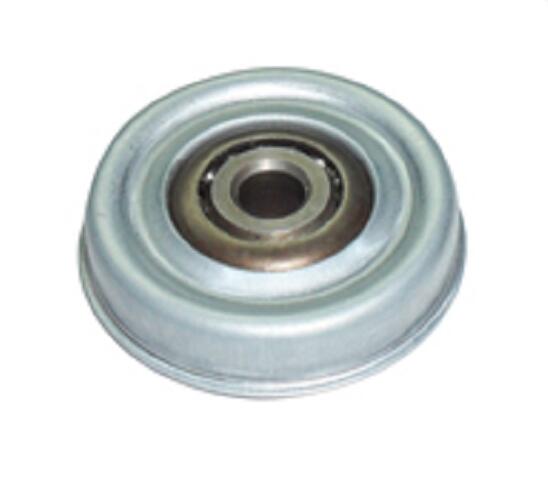

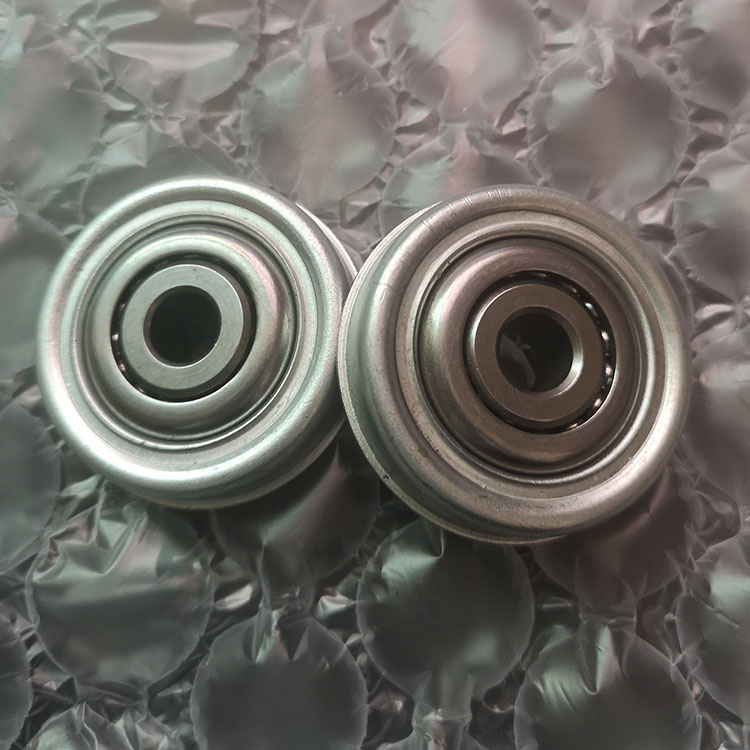

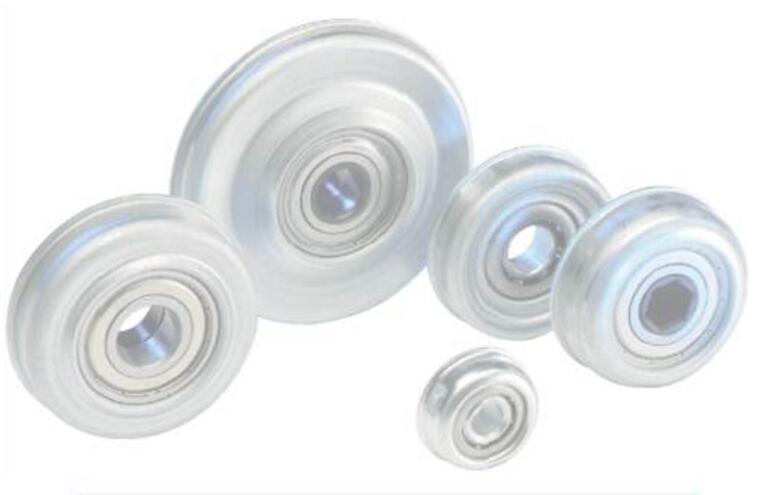

10000MTR50x1.5.30-2.10 Pressed Steel Bearing Specification:
Conveyor roller bearings are dedicated to the ends of the non-powered roller, also known as "Roller heads", "Roller end caps".
The main style is stamped housing + precision bearings or stamped type bearings.
 |
 |
Use hydraulic equipment to fit the mold and press bearing at both ends.
Some MTR Series Conveyor Bearings No.:

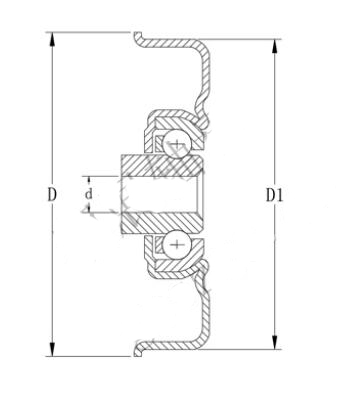

| Part No. |
Dimension |
|||
| D1 | D | d |
|
|
| MTR-40x1.5 | 37.3 | 39.5 | 8,10,12 | |
|
MTR-40x2.0 |
36.3 | 39.5 |
8,10,12 |
|
|
MTR-48x1.5 |
45.3 | 47.5 | 10,12,15 |
|
|
MTR-50x1.5 |
47.3 | 49.5 |
10,12,15 |
|
|
MTR-50x2.0 |
46.3 | 49.5 |
10,12,15 |
|
|
MTR-60x1.5 |
57.3 | 59.5 |
12,15,20 |
|
|
MTR-60x2.0 |
56.3 | 59.5 |
10,12,15 |
|
 |
 |
MTR-20 Series Bearings:
Conveyor Bearings MTR-40
Metal Roller Bearings MTR-40.15
MTR-60x1.5.40.12
MTR-60x1.5.40.15
MTR-60x2.40.15
MTR-60x2.40.12
MTR-60x2.20.12
MTR-40x1.5.20.10
MTR-40x1.5.20.12
MTR-30x1.5.16.10
MTR-30x1.5.16.8
