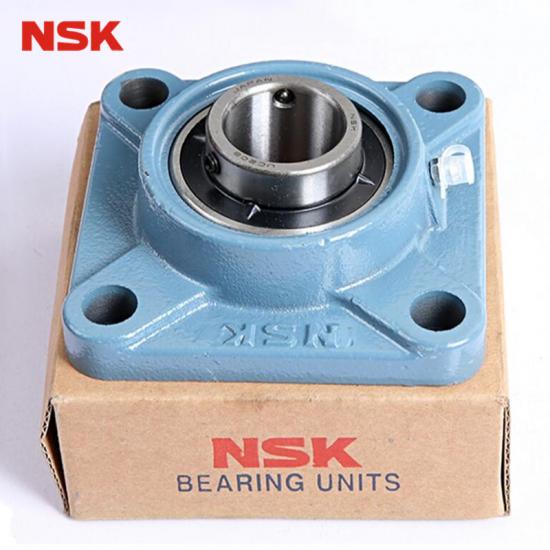

NSK BEARING UNIT F208 with inner standard size 40mm ,four-bolt flanged housing units ,square design ,cast iron ,grub scress in inner ring ,RSR seal
item no.:
UCF208lead time:
7-35 DAYSproduct orgin:
China ,Shanghaibrand:
NSKshipping port:
Ningbo ,Shanghai,GuanzhouMOQ:
1
Pillow block bearing consist of outer spherical ball bearing and cast iron bearing seat. The internal structure of outer spherical ball bearing , in the outer ring, outer ring has a truncated spherical outside surface, with that surface ,this bearing can be adjust to match with different spherical surface of the bearing.Usually these bearings have a space between the inner hole and shaft, with the top silk, eccentric sleeve or be a set of bearing inner ring is fixed on the shaft, and with the axis of rotation.
China Wholesale Block Bearing f208 Specification :
Housing units UCF208 with four -bolt flanged housing units,square design,cast iron material ,with grub screw in inner ring ,RSR seals.
d
40mm
L
130mm
U
51.2mm
Weight
1.91kg
Housing
F208
Radial insert ball bearing
UC208
We Can Produce Many Bearing Housing Type:
China Bearing housing are also designed with a certain degree of self-alignment, they are easy to install, and have a double-structured sealing device that can work in harsh environments. There are many type of pillow block,such as vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), ring seat (C), slider seat, etc. T).
1)Pillow blocks mounted bearings– these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
These bearing housing are with square ,round types
3)Take-up units type - UCT, HCT, and UKT.
These bearing housings are widely used in conveyor chains and conveyor belts.
The bearing unit is consist of pillow block and insert bearing ,the spherical bearing UC208 with pillow block P series,the new bearing nuit is UCP208. Due to the strong interchangeability of the spherical bearing with seat, the bearing core can be assembled freely in the bearing housing of the same specification and different shape,such as UCT208,UCF208,UCFL208.
Here Is Bearing Housing Photos For Your Reference:
Below Here Is UCP Bearing Block No. For Your Reference :
Unit No.
Shaft Dia
Dimensions (mm)
Bolt Size
Weight
d
H
L
J
A
N
N1
H1
Ho
B
S
A3
(kg)
(in)
(mm)
UCWP201
12
30.2
125
95
32
13
18
13
57
27.4
11.5
-
M10
0.72
UCWP202
15
30.2
125
95
32
13
18
13
57
27.4
11.5
-
M10
0.66
UCWP203
17
30.2
125
95
32
13
18
13
57
27.4
11.5
-
M10
0.66
UCP201
12
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.76
UCP201-8
1/2
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.76
UCP202
15
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.74
UCP202-9
9/16
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.74
UCP202-10
5/8
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.74
UCP203
17
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.72
UCP203-11
11/16
30.2
127
95
38
13
19
14
61
31
12.7
-
M10
0.72
UCP204
20
33.3
127
95
38
13
19
14
64
31
12.7
46.4
M10
0.70
UCP204-12
3/4
33.3
127
95
38
13
19
14
64
31
12.7
46.4
M10
0.70
UCP205
25
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP205-14
7/8
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP205-15
15/16
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP205-16
1
36.5
140
105
38
13
19
15
71
34.1
14.3
48
M10
0.76
UCP206
30
42.9
160
121
44
17
21
16
82
38.1
15.9
52
M14
1.25
UCP206-17
1-1/16
42.9
160
121
44
17
21
16
82
38.1
15.9
52
M14
1.25
UCP206-19
1-3/16
42.9
160
121
44
17
21
16
82
38.1
15.9
52
M14
1.25
(mm)
We professional chinese bearing unit manufacturer in China ,we also are can provide other brand bearing units such as ,TNT ,NSK,IKO,NACHI ASAHI Pillow Block Bearing.
Best Quality UCF208 Bearing Mount Can Be Widely Used In:
Bearing housing with compact structure, convenient loading and unloading, perfect sealing, suitable for simple support are often used in below area:
1)Agriculture,
2)Light textile,
3)Mining,
4)Food &beverage,
5)Pharmaceutical,
6)Chemical processing,
7)Printing,
8)Dyeing,
9)Various kinds of conveying and rolling devices.
If you need quotation for bearing housing,pls feel free to contact with us ,bearing housing is main of our products .
