LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more
inset ball bearingGE25-XL-KRR-B with size 25*52*44.5mm ,this bearing are produce with Chrome steel material R seals on the both bearing sides ,and located with eccentric locking collar.
item no.:
GE25-XL-KRR-Blead time:
7 daysbrand:
INAshipping port:
Guangzhou,Shanghai,NingboMOQ:

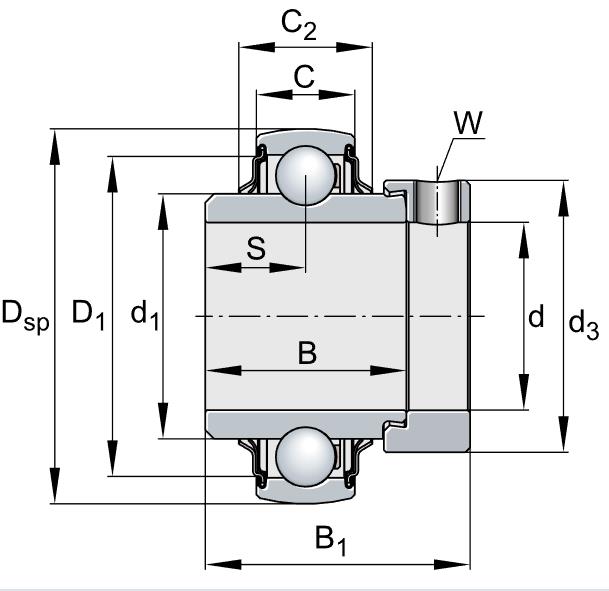

100Precision Insert Bearing GE25-XL-KRR-B Introduction :
| d | 25 mm |
| DSP | 52 mm |
| B1 | 44,5 mm |
| B | 34,9 mm |
| C | 15 mm |
| C2 | 16,7 mm |
| Ca | 4,1 mm |
| D1 | 42,5 mm |
| d1 | 33,8 mm |
| d3 max | 37,5 mm |
| S | 17,5 mm |
| W | 3 mm |
| m（Mass) | 0,25 kg |
| Cr(Basic dynamic load rating, radial) | 14900 N |
| C0r(Basic static load rating, radial) | 7800 N |
| Cur(Fatigue limit load, radial) | 410 N |
| f0(Calculation factor) | 13,8 |
We Can Provide Other Bearings Series:
| Bearing Series | For shaft diameter in mm | Features |
| GRAE..-NPP-B | 12-60mm | Spherical outer ring,location by eccentric locking collar ,P seals on both sides |
| RAE..-NPP-B | 12-50mm | Spherical outer ring,location by eccentric locking collar ,P seals on both sides |
| RALE..-NPP-B | 20-30mm | Spherical outer ring,location by eccentric locking collar ,P seals on both sides |
| RA..-NPP-B | 5/8''-1 1/2'' | Spherical outer ring,location by eccentric locking collar ,P seals on both sides,inch size bore |
| GE..-KRR-B | 17-120 | Spherical outer ring,location by eccentric locking collar ,R seals on both sides |
GE-KRR-B Series Bearing List :
| Bearing No. | d | DSP | B1 |
| mm | mm | mm | |
| GE17-XL-KRR-B | 17 | 40 | 37,4 |
| GE20-XL-KRR-B | 20 | 47 | 43,7 |
| GE25-XL-KRR-B | 25 | 52 | 44,5 |
| GE30-XL-KRR-B | 30 | 62 | 48,5 |
| GE35-XL-KRR-B | 35 | 72 | 51,3 |
| GE40-XL-KRR-B | 40 | 80 | 56,5 |
| GE45-XL-KRR-B | 45 | 85 | 56,5 |
| GE50-XL-KRR-B | 50 | 90 | 62,8 |
| GE55-XL-KRR-B | 55 | 100 | 71,4 |
| GE60-XL-KRR-B | 60 | 110 | 77,9 |
| GE65-214-XL-KRR-B | 65 | 125 | 66 |
| GE70-XL-KRR-B | 70 | 125 | 66 |
| GE75-XL-KRR-B | 75 | 130 | 67 |
| GE80-XL-KRR-B | 80 | 140 | 70,7 |
| GE90-XL-KRR-B | 90 | 160 | 69,5 |
| GE100-XL-KRR-B | 100 | 180 | 75 |
| GE120-XL-KRR-B | 120 | 215 | 81 |

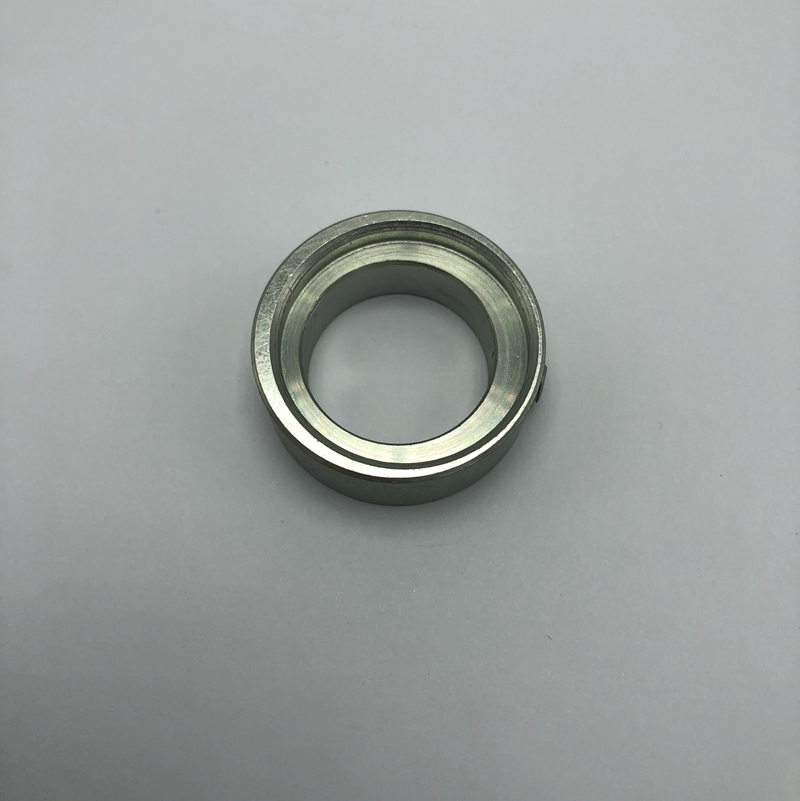

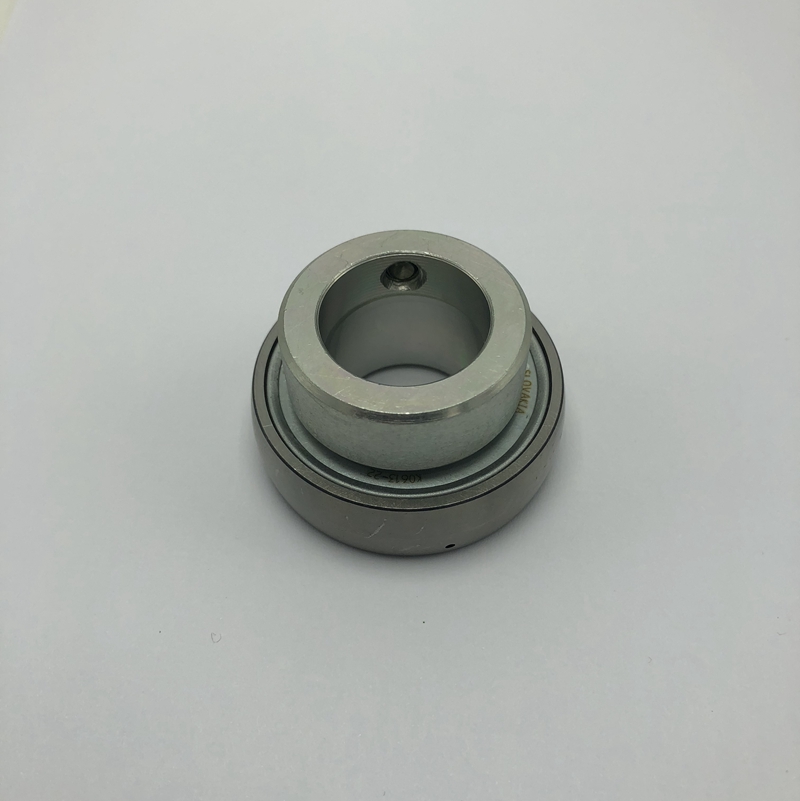

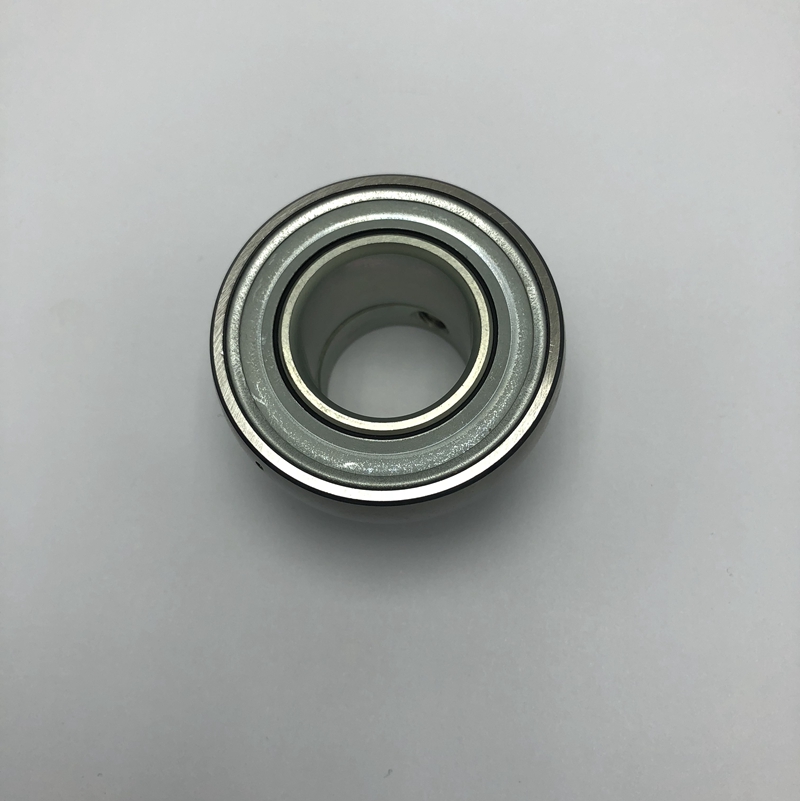

Ball Insert Bearing Picture GE25-XL-KRR-B
 |
 |
 |
 |
previous :
Radial Insert Ball Bearings GRAE25-NPP-Bnext :
Original INA Bearing Housing GAY25-XL-NPP-B With Size 25*52*27mm
INA Brand Radial Insert Bearing GNE50-KRR-B with size 50*110*66.75mm are popular size which can used in the agricultural machinery .
Bearing GE45-XL-KRR-B with size 45*155*56.5 mm are produce with Chorme steel GCR15 ,this bearing often matched with a bearing housing ,the new bearing unit is Pillow Block RME45-XL .
GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm
1.We can provide best quality of INA insert ball bearing 2. we can supply different bearing number 3. Free sample available for you 4.Fast delivery time 5. Best service
GRAE40-NPP-B Radial insert ball bearing with Spherical outer ring ,location by eccentric locking collar ,p seals on both sides ,the size is 40*80*43.8mm
GRAE25-NPP-B With Size 25*52*31mm are produce with Chrome steel material
