RAE 40 NPPB Ball Insert Bearings

40X80X43.7mm RAE40NPPB bearings are produce with Chrome steel Gcr15 ,we can produce this bearings with high quality and free sample can be provide in advance .

item no.:
RAE30 NPPB
lead time:
7 days
product orgin:
China
brand:
INA
shipping port:
Guangzhou
MOQ:
100

products details

RAE 40 NPPB Ball Insert Bearing Specification:

Part Number:RAE40-XL-NPPB; RAE40-NPPB; RAE40NPPB

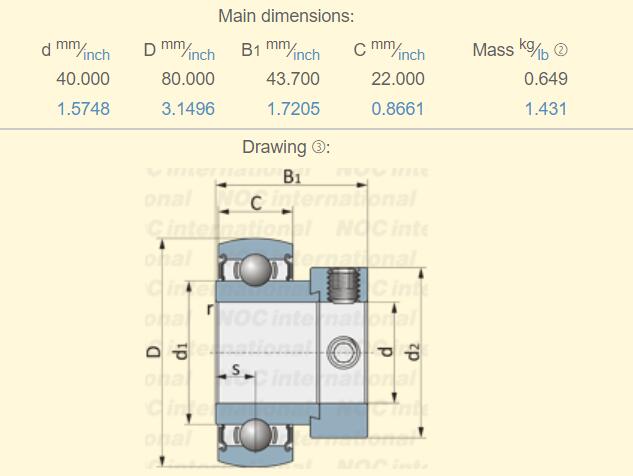

Dimension :

Bore type:Round

Bore diameter:40 mm

Outside diameter:80 in

Outer ring width: 21 mm

Inner ring width: 43.8 mm

Radial dynamic load capacity: 32500 N

Radial static load capacity:19800 N

Operating temperature range: -20 to +120 °C

Material :Chrome steel Gcr15

RAE 40 NPPB Bearing

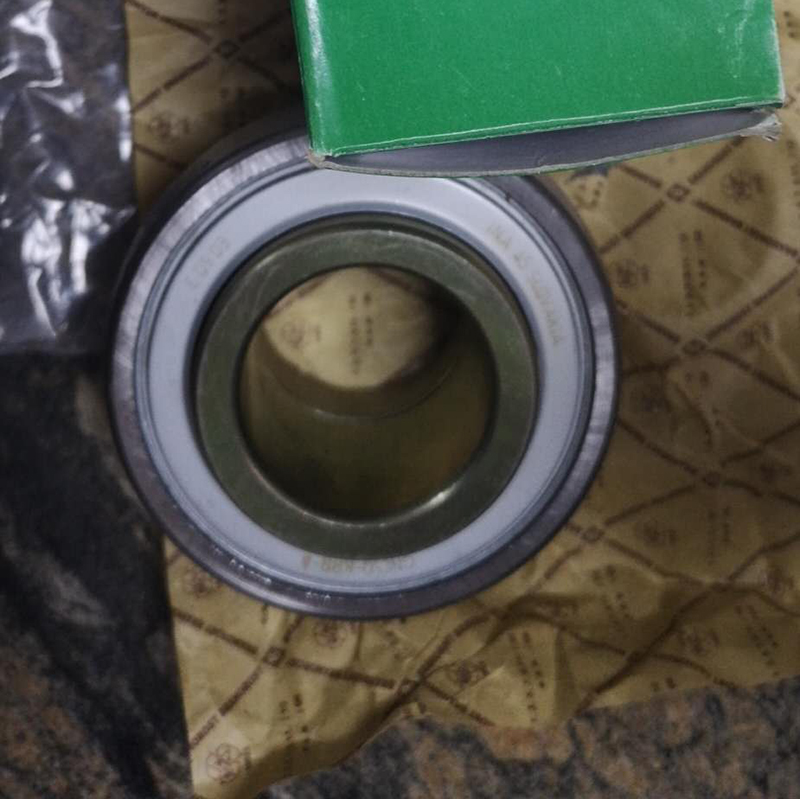

Round Bore, Eccentric Collar Bearing Picture Show ：

Bearing Shield Marking with :RAE40-NPP-B + INA 45 SLOVAKIA + Y07 03

RAE40NPPB bearing insert with spherical outer ring, eccentric locking collar and P seals on both sides.

We also can produce other RAE..-NPP-B series bearings

For more bearings ,pls contact with us at info@bearings-factory.com.

RAE12NPP-B	RAE12-XL-NPP-B
RAE15NPP-B	RAE15-XL-NPP-B
RAE17NPP-B	RAE17-XL-NPP-B
RAE20NPP-B	RAE20-XL-NPP-B
RAE25NPP-B	RAE25-XL-NPP-B
RAE30NPP-B	RAE30-XL-NPP-B
RAE35NPP-B	RAE35-XL-NPP-B
RAE40NPP-B	RAE40-XL-NPP-B
RAE45NPP-B	RAE45-XL-NPP-B
RAE50NPP-B	RAE50-XL-NPP-B
RAE20NPP-NR	RAE20-XL-NPP-NR
RAE25NPP-NR	RAE25-XL-NPP-NR
RAE30NPP-NR	RAE30-XL-NPP-NR
RAE35NPP-NR	RAE35-XL-NPP-NR
RAE40NPP-NR	RAE40-XL-NPP-NR
