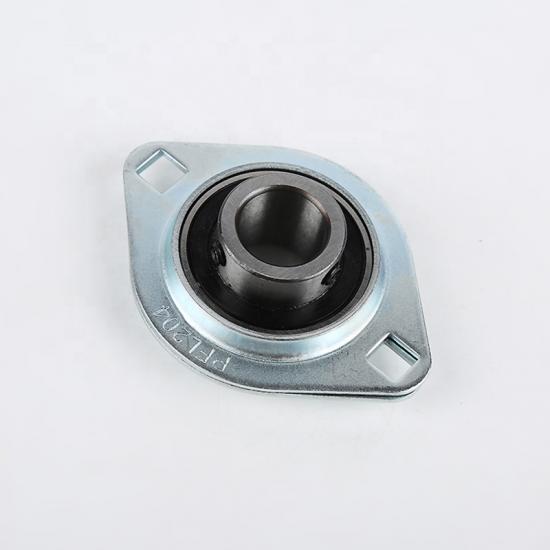

SBPFL204 Flange Mount Unit

20*90*25MMSBPFL 204 Plummer block and flanged housing units ,we have this bearing in stock,and we can offer competitive price for you .

item no.:
SBPFL204
lead time:
3 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou
MOQ:
100

products details

SBPFL 204 Plummer Block and Flanged Housing Units Specification :

Dimension :

inner diameter :20mm

outer diameter :90mm

height :25mm

Weight :0.24 kgs

Packing: white box .

With rich stock

Material : Chrome steel + stamped steel

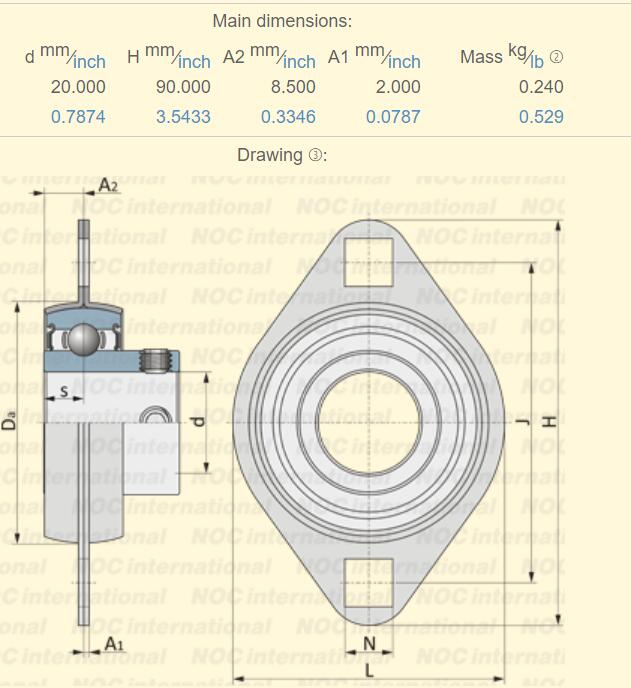

SBPFL 204 bearing dimension

We also can produce with Pressed Steel Oval Flange Ball Bearing Unit SBPFL 204 and SAPFL Series :

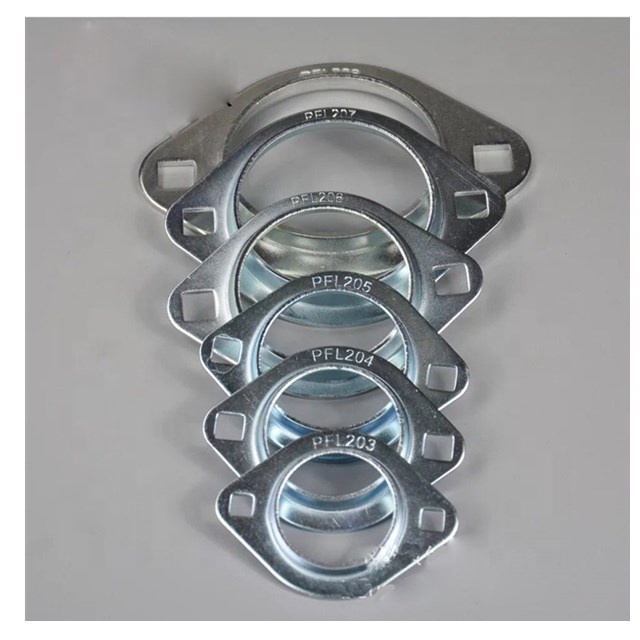

Steel Plate Stamping Bearing Housing PFL204 ,PFL205,SBPFL204,SBPFL205

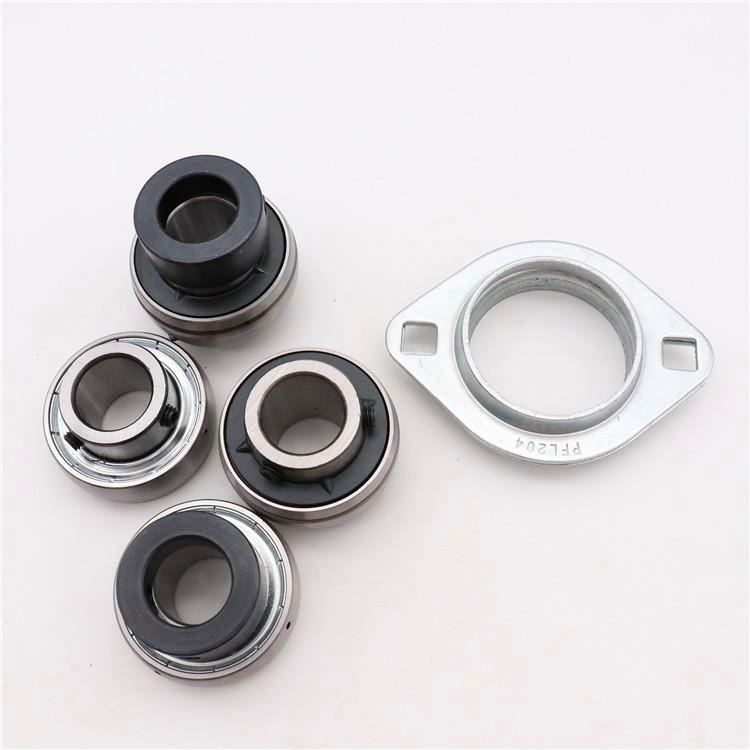

Assembled with SA,SB,NA type of insert bearings

Bearing No.	Housing No.	Unit No.	Size
SA201	PFL203	SAPFL201	12×81×63.5×59×28.6
SA202	PFL203	SAPFL202	15×81×63.5×59×28.6
SA203	PFL203	SAPFL203	17×81×63.5×59×28.6
SA204	PFL204	SAPFL204	20×90×71.5×67×29.5
SA205	PFL205	SAPFL205	25×95×76×71×30.5
SA206	PFL206	SAPFL206	30×113×90.5×84×33.9
SA207	PFL207	SAPFL207	35×122×100×94×36.5
SB201	PFL203	SBPFL201	12×81×63.5×59×22
SB202	PFL203	SBPFL202	15×81×63.5×59×22
SB203	PFL203	SBPFL203	17×81×63.5×59×22
SB204	PFL204	SBPFL204	20×90×71.5×67×25
SB205	PFL205	SBPFL205	25×95×76×71×27
SB206	PFL206	SBPFL206	30×113×90.5×84×30
SB207	PFL207	SBPFL207	35×122×100×94×32
SA201-8	PFL203	SAPFL201-8	12.7×81×63.5×59×28.6
SA202-10	PFL203	SAPFL202-10	15.875×81×63.5×59×28.6
SA202-9	PFL203	SAPFL202-9	14.288×81×63.5×59×28.6
SA203-11	PFL203	SAPFL203-11	17.462×81×63.5×59×28.6
SA204-12	PFL204	SAPFL204-12	19.05×90×71.5×67×29.5
SA205-14	PFL205	SAPFL205-14	22.225×95×76×71×30.5
SA205-15	PFL205	SAPFL205-15	23.812×95×76×71×30.5
SA205-16	PFL205	SAPFL205-16	25.4×95×76×71×30.5
SA206-18	PFL206	SAPFL206-18	28.575×113×90.5×84×33.9
SA206-19	PFL206	SAPFL206-19	30.162×113×90.5×84×33.9
SA206-20	PFL206	SAPFL206-20	31.75×113×90.5×84×33.9
SA207-20	PFL207	SAPFL207-20	31.75×122×100×94×36.5
SA207-21	PFL207	SAPFL207-21	33.338×122×100×94×36.5
SA207-22	PFL207	SAPFL207-22	34.952×122×100×94×36.5
SA207-23	PFL207	SAPFL207-23	36.512×122×100×94×36.5
SB201-8	PFL203	SBPFL201-8	12.7×81×63.5×59×22
SB202-10	PFL203	SBPFL202-10	15.875×81×63.5×59×22
SB202-9	PFL203	SBPFL202-9	14.288×81×63.5×59×22
SB203-11	PFL203	SBPFL203-11	17.462×81×63.5×59×22
SB204-12	PFL204	SBPFL204-12	19.05×90×71.5×67×25
SB205-14	PFL205	SBPFL205-14	22.225×95×76×71×27
SB205-15	PFL205	SBPFL205-15	23.812×95×76×71×27
SB205-16	PFL205	SBPFL205-16	25.4×95×76×71×27
SB206-18	PFL206	SBPFL206-18	28.575×113×90.5×84×30
SB206-19	PFL206	SBPFL206-19	30.162×113×90.5×84×30
SB206-20	PFL206	SBPFL206-20	31.75×113×90.5×84×30
SB207-20	PFL207	SBPFL207-20	31.75×122×100×94×32
SB207-21	PFL207	SBPFL207-21	33.338×122×100×94×32
SB207-22	PFL207	SBPFL207-22	34.952×122×100×94×32
SB207-23	PFL207	SBPFL207-23	36.512×122×100×94×32

Construction of press steel housing

1) SBPP200 and SAPP type Pillow Blocks are types of which SA200 type with eccentric locking collar andSB200 type with setscrew bearings are assembled respectively into a two -piece pressed-steel housing

2)SBPFL200and SAPFL200 type has only two bolt holes.It needs smaller mounting space,It's function is the same as the above-mentioned pressed flange housings

3)SAPF200,SAPFT200 and SBPF200SBPFT200 type consist of two pieces of pressed steel plates,mounted with SA200 or SB200.It has light weight and simple stricture,which is applied to the machine of which the rotating speed is low or medium,or the machine load is light .

4)SAPFT200,SBPFT200 type havs the same function as the pressed round flange housing,It can be used where
