SG66 U Groove Roller Bearing

new products

SG66 U Groove Roller Bearing

6*22*10mm SG66/1 U Groove Pulley Guide Bearings,we can produce sample for you.

  • item no.:

    SG66/1
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

Track Rollers SG66 SG66-2RS Bearing Specification :


Dimension:

Inner diameter : 6mm

Outer diameter : 22mm

Height :10mm


Bearing material: bearing steel or stainless steel

Roller: single/double row



Application of U Groove Track Bearing:

- u groove bearing is widely used in home appliances, testile machine,embroidery machine bearings etc.

textile embroidery machines machinery bearing


We can Produce other SG Series Track Rollers Bearing:


Bearing No .


Φdw
mm


Bore
mm


O.D.
mm


Width
mm


Width
mm


mm

D2
mm

H

 Chamfer r/min
mm

(KN)
Load Rating


Ball Complement


Weight

IBS

Ref No.

Φdw

d

D

C

B

L

d2

H

R/min

Cw

Cow

No.

Size

g

SG10

LFR50/4NPP

5

4

13

6

3.5*2

16.08

5.9



0.3

1.05

0.85

2.000

14

7

SG15

SG5RS

6

5

17

8

5.75

20.46

8.6

0.5

0.3

1.8

0.95

2.000

18

8

SG15-10



10

5

17

8

5.75

25.5

8.6

1.2

0.3

1.8

0.95

2.000

18

9

SG15-1



7

5

17

8

5.75

20.46

8.6

1.5

0.3

1.8

0.95

2.000

18

10

SG20

SG6RS

8

6

24

11

7.25

28.62

11.1

0.7

0.3

3.48

1.75

3.175

14

25

SG20-1



9

6

24

11

7.25

28.62

11.1

0.5

0.3

3.48

1.75

3.175

14

25

SG25

SG8RS

10

8

30

14

8.5

35.77

13

0.7

0.3

5.18

2.7

3.969

14

49

SG25-1



5

8

27.6

14

10

30.77

13

1

0.3

5.18

2.7

3.969

14

50

SG35

SG12RS

12

12

42

19

12.5

48.93

18

1

0.5

10.6

5.9

5.953

14

136

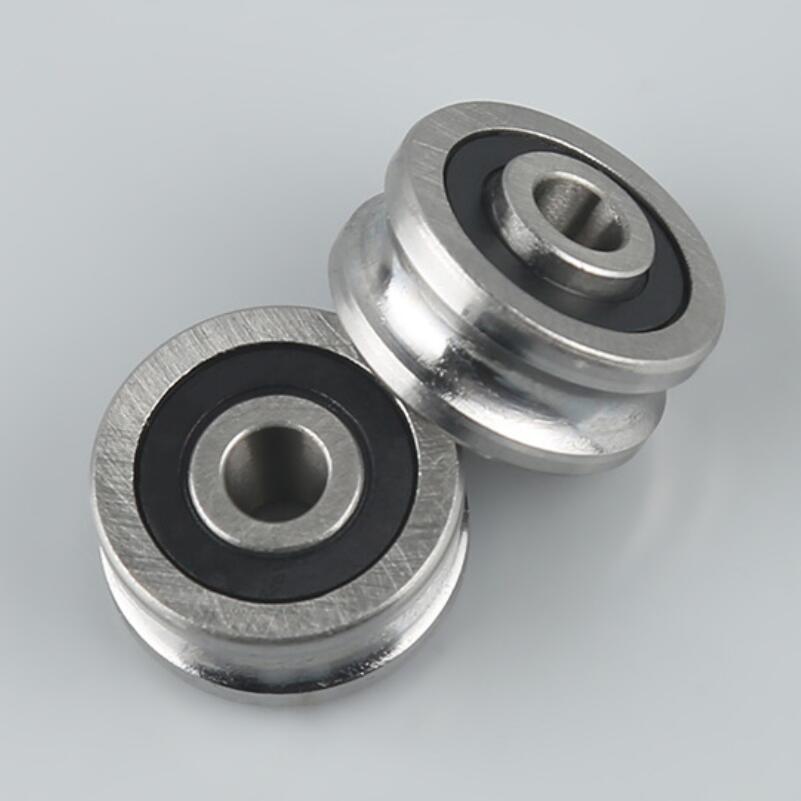

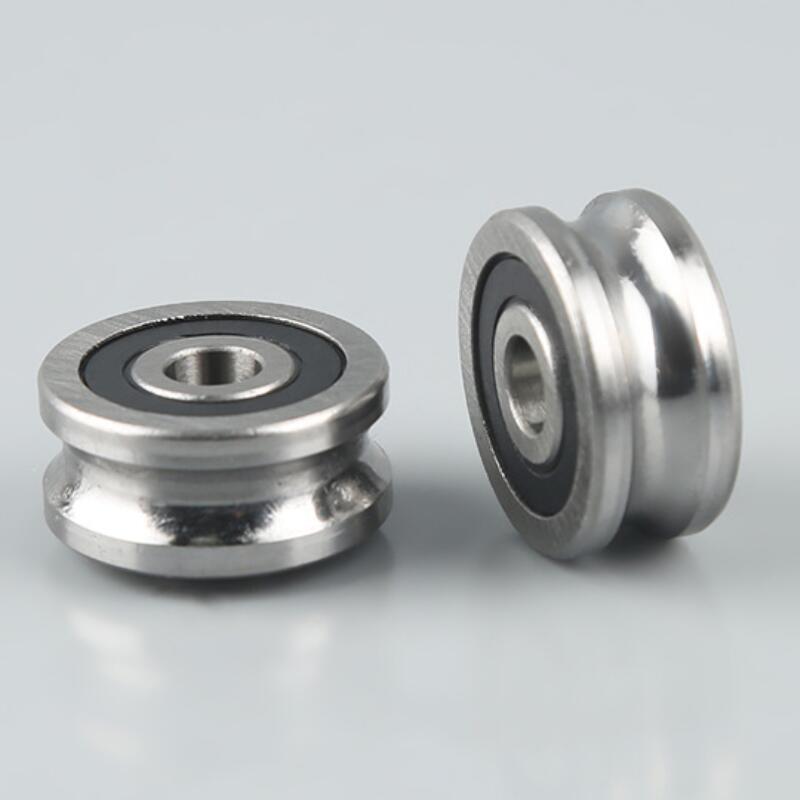

High quality embroidery machine bearing picture :

SG66/1 bearing
SG66 U Groove Bearings


ZZ BEARING is Guide Roller Bearing Manufacturer:


SG Series Embroidery machine track roller bearing models:

SG15 SG15-10 SG20 SG20 SG25 SG35 SG15N SG20N SG25N SG35N LFR50/5-4N LFR50/5N LFR50/5 LFR50/8N LFR50/8-8N


LV Series track roller bearing: LV 20/7 ZZ, LV 20/8 ZZ, LV20/10ZZ, LV 202-38 ZZ, LV 202-40 ZZ, LV 201 ZZ, LV 201-14.2RS, LV 202-41

ZZ, LV 203 ZZ, LV 204-57 ZZ, LV 204-58 ZZ



W type guide roller bearing: W (RM) 0, 1 W (RM), W (RM) 2, 3 W (RM), W (RM) 4, W (RM) 0 x, W (RM) 1 x, 2 x W (RM), W (RM) 3 x, W

(RM) 4 x, W (RM) 4 xl, W4XXL, W (RM) 1 SSX, W (RM) 2 SSX, W (RM) 3 SSX, W (RM) 4 SSX.
