LFR5201KDD U Groove Track Roller Bearings 12x35x15.9mm LFR5201KDD U groove track roller bearings are produce with Chrome steel Gcr15 ,we can provide sample for you test . more
SG25 U Groove Ball Track Guide Bearings 8*30*14mm SG25 bearings are produce with Chrome steel Gcr15 ,we can provide sample before order . more
S51106 Thrust Ball Bearings 30x47x11mm S51106 Stainless steel thrust ball bearing,produce with stainless steel ,we can provide with OEM service for you . more

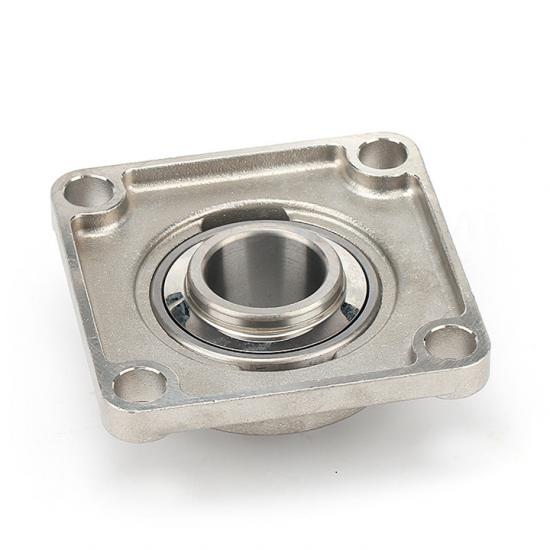

40 mm UCF208 Bearing with inner standard size 40mm ,four-bolt flanged housing units ,square design ,cast iron ,grub scress in inner ring ,RSR seal,we are produce this bearing with stainless steel material .
item no.:
SSUCF208lead time:
7-35 DAYSproduct orgin:
China ,Shanghaishipping port:
Ningbo ,Shanghai,GuanzhouMOQ:
1Stainless Steel Pillow Block Bearing Introduction :
stainless steel insert bearings are the outer diameter of the spherical outer ring with double sealing device, widen the inner ring of deep groove ball bearings, outer spherical ball bearing and all kinds of structure of casting bearing combination or stamping steel housing is set-contained bearing spherical ball bearing.
Below Here is SUCF200 Series Bearing No.:
|
Bearing Unit No. |
Bore Dia | Dimensions(mm) |
Bearing No. |
Housing No. |
Weight (kg) |
Bearing Unit No. |
||||||||
| d | a | e | i | g | L | N | E | S | ||||||
| in | mm | |||||||||||||
| SUCF201 | 12 | 86 | 64 | 15 | 11 | 25.5 | 12 | 33.3 | 12.7 | SUC201 | SF203 | 1.00 | SUCF201 | |
| SUCF201-8 | 1/2 | SUC201-8 | SUCF201-8 | |||||||||||
| SUCF202 | 15 | SUC202 | SUCF202 | |||||||||||
| SUCF202-10 | 5/8 | SUC202-10 | SUCF202-10 | |||||||||||
| SUCF203 | 17 | SUC203 | SUCF203 | |||||||||||
| SUCF203-11 | 11/16 | SUC203-11 | SUCF203-11 | |||||||||||
| SUCF204 | 20 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 12.7 | SUC204 | SF204 | 0.95 | SUCF204 | |
| SUCF204-12 | 3/4 | SUC204-12 | SUCF204-12 | |||||||||||
| SUCF205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 14.3 | SUC205 | SF205 | 1.20 | SUCF205 | |
| SUCF205-14 | 7/8 | SUC205-14 | SUCF205-14 | |||||||||||
| SUCF205-15 | 15/16 | SUC205-15 | SUCF205-15 | |||||||||||
| SUCF205-16 | 1 | SUC205-16 | SUCF205-16 | |||||||||||
| SUCF206 | 30 | 108 | 83 | 18 | 14.3 | 31 | 12 | 40.2 | 15.9 | SUC206 | SF206 | 1.89 | SUCF206 | |
| SUCF206-17 | 1-1/16 | SUC206-17 | SUCF206-17 | |||||||||||
| SUCF206-18 | 1-1/8 | SUC206-18 | SUCF206-18 | |||||||||||
| SUCF206-19 | 1-3/16 | SUC206-19 | SUCF206-19 | |||||||||||
| SUCF206-20 | 1-1/4 | SUC206-20 | SUCF206-20 | |||||||||||
| SUCF207 | 35 | 117 | 92 | 19 | 15.5 | 34 | 14 | 44.4 | 17.5 | SUC207 | SF207 | 2.39 | SUCF207 | |
| SUCF207-20 | 1-1/4 | SUC207-20 | SUCF207-20 | |||||||||||
| SUCF207-21 | 1-5/16 | SUC207-21 | SUCF207-21 | |||||||||||
| SUCF207-22 | 1-3/8 | SUC207-22 | SUCF207-22 | |||||||||||
| SUCF207-23 | 1-7/16 | SUC207-23 | SUCF207-23 | |||||||||||
Stainless Bearing Units Application :
It is widely used in various mechanical equipments and conveying device.
Stainless Plummer blocks are specially designed to meet particular engineering demand for food.
Medical and chemical industry. Which have some excellence such as cleanness, Anti-corrosion etc.
Bearing housing is made of AISIS304 and the insert bearings are made of AISI SUS440C, Specially AISI SUS316 also could be used.
We Can Produce Different Pillow Block Bearing For You .
UCP205-16 with inner standard size 1 inch ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.
Model Number:UC205-16 Bore Size:1 inch Structure:Insert ball bearings Material:AISI 52100 steel,heat treated,HRC58-64 OD:52mm Weight range:0.19kg Load type:Standard Duty Locking style:Setscrew locking
UC204-20 bearing with 20mm bore Insert Set Screw Ball Bearing With Lubricating Groove Access, pre-lubricated, Spherical Outer to Insert in Housing
Germany INA Housing Units PME25-XL-N with radial insert ball bearing GRAE25-XL-NPP-B with size 25*115*31mm ,the housing material is Cast iron ,and the insert bearing material is Chrome steel
Housing Units PME40-XL-N Insert Bearing GRAE40-XL-NPP-B Housing ME08 With Size 40*145*43.8mm ,The Material Are With Cast Iron And Chrome Steel GCR15
UCP204 with inner standard size 20mm ,the bearing unit are produced with Chrome steel Gcr15 and cast iron housing and locked by setscrew.
