55.562x139.7x55.6mm ST 740 Round Bore Disc Harrow Unit Agricultural Bearings
item no.:
FD209RElead time:
30 daysproduct orgin:
China ,Shanghaishipping port:
Ningbo,Shanghai,Guangzhou,QingdaoMOQ:
50
ST740 Ag Bearing Specification :
Bearings No.:ST740
Application :Agricultural Bearing
Inside Diameter:55.57 mm
Thickness:55.60 mm
Precision Rating:ABEC-1
Bearing Material:Chrome steel GCr15
agricultural bearing, flanged bearing
FD209RB, ST491, ST491A, DHU1-3/4" R-211, FD211RJA, FD211RJ, FD211RB, ST740, ST491B, FD2
We can Produce other Agricultural Bearings:
| Unit Number | Shaft Size | Housing | Inner Ring | Square | Bolt Circle | Frame opening | Bolt Hole | Bolt Hole | Weight approx. | ||
| Width | Width | Diameter | Diameter | ||||||||
| A | B | C | D | E | t | M min | F | Width G | Length H | kg | |
| FD209RJ | 1 3/4 RD | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 1.53 | ||
| FD209RJA | 1 3/4 RD | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 1.53 | ||
| FD209RE | 1 1/2 RD | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 0.687 | 1.58 | |
| FD209RK | 1 1/4 SQ | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 0.687 | ||
| FD209RM | 1 1/8 SQ | 1.64 | 1.687 | 5 | 5 | 6 | 3.865 | 0.531 | 0.687 | 1.86 | |
| FD210R | 1 1/8 SQ | 1.75 | 1.75 | 5 | 5 | 6 | 3.865 | 0.531 | |||
| FD211RBA | 2 3/16 RD | 1.799 | 2.187 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 2.42 | ||
| FD211REA | 1 3/4 RD | 1.799 | 2.187 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 2.67 | ||
| FD211RJA | 1 15/16 RDC | 1.799 | 2.125 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 2.58 | ||
| FD211RKA | 1 3/4 H | 1.799 | 2.188 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | |||
| FD211RKB | 1 3/4 H | 1.799 | 2.188 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | |||
| FD211RM | 1 1/2 SQ | 1.799 | 2 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | 0.687 | ||
| FD211RP | 40(mm) SQ | 1.799 | 2.006 | 5.5 | 5.5 | 8 | 4.491 | 0.531 | |||
| ST740 | 2 3/16 RD | 1.811 | 2.187 | 5.5 | 5.5 | 7 | 4.491 | 0.531 | 2.42 | ||
|

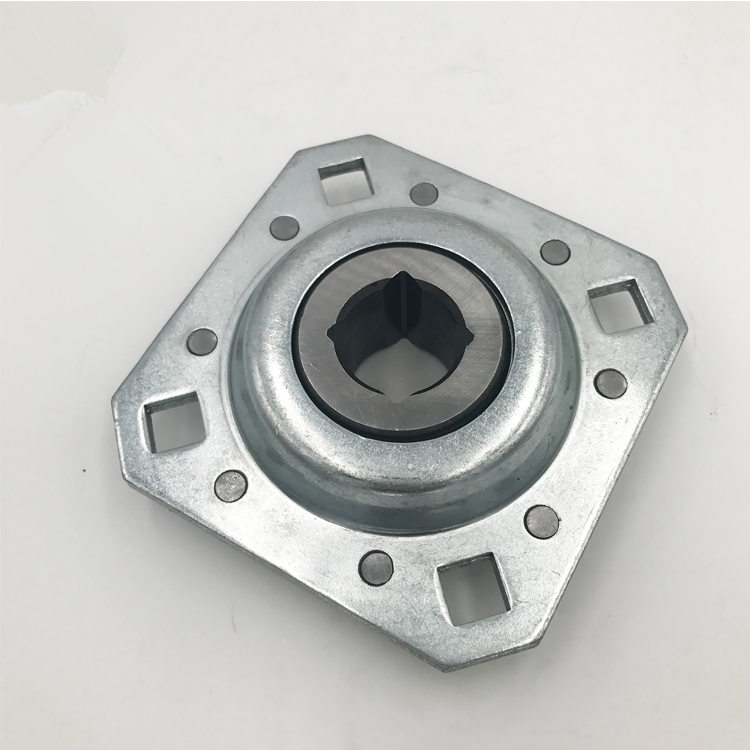

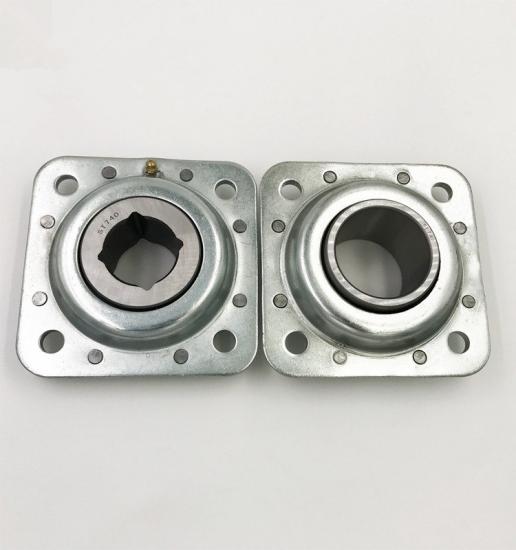

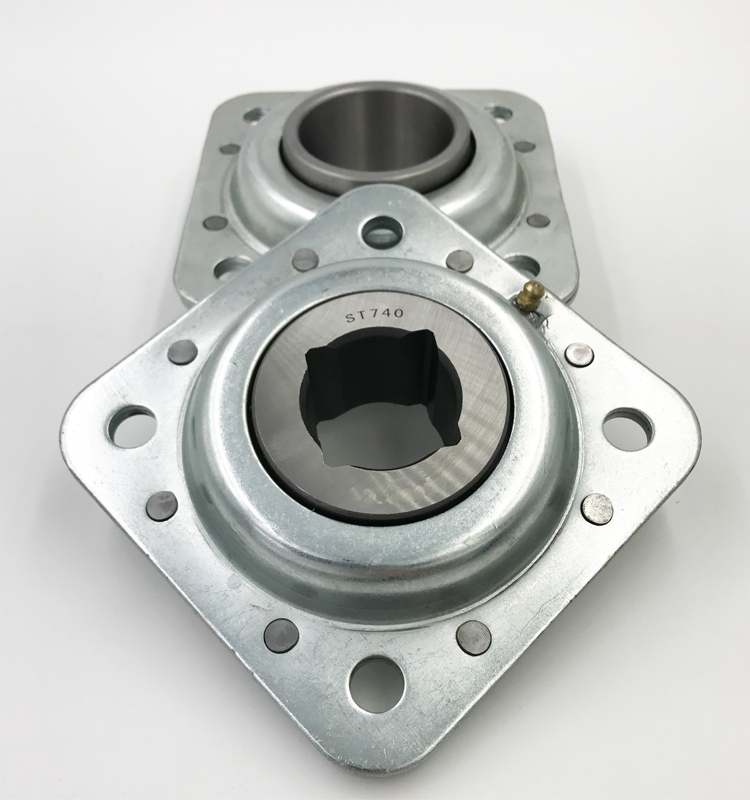

Ag Bearing Picture :
|
 |
previous :
F-110390 Agricultural Machinery Bearingnext :
FD209RE Round Bore Flanged Disc Harrow Bearing
round bore agricultural bearing W214PPB9 with size 70.256 x 125 x 44.45 / 28mm ,are made with Chrome steel material .
GB208KRRH Bearing with hex bore inner ,the bearings are widely used in agricultural implements and conveyors machinery . With hex bore ,the bearing can mounting easily .
Agricultural Machinery Bearing W208PP10 With Material Chrome Steel And The Inner Size Is 1.5 Inch ,Outer Size Is 80mm And The Height Is 1.688 Inch
Agricultural Machinery Bearing GW208PPB8 With Material Chrome Steel And Standard Dimensions Are, Bore size:1.1250 in*Outside diameter:3.1496 in Overall width:1.4375 in
AG Disc Harrow Bearing GW211PPB13 With Material Chrome Steel And The Inner Size Is 1.785 Inch ,Outer Size Is 100mm And The Height Is 1.312 Inch
