FD209RE Round Bore Flanged Disc Harrow Bearing

new products

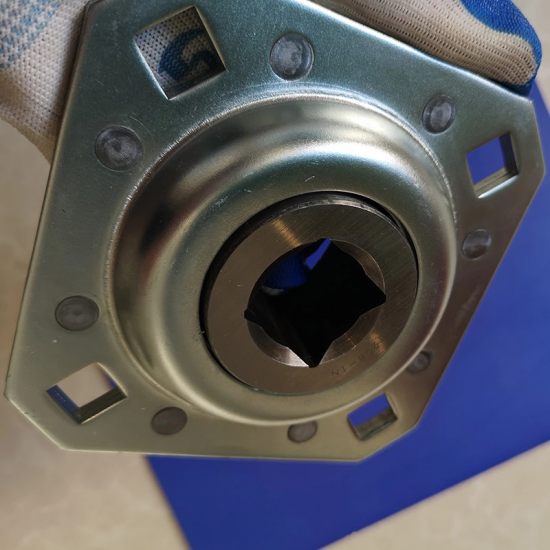

FD209RE Round Bore Flanged Disc Harrow Bearing

1.500"*5.000"*1.687" round bore bearing FD209RE ,we can produce with high quality ,free sample can be provide for you.

  • item no.:

    FD209RE
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    50
products details




FD209RE, FD209RB Round Bore Bearing Specification :


DIMENSIONS:

BORE: 1-1/4" SQUARE BOLT TO BOLT: 5" (BOTTOM LEFT TO TOP RIGHT)

Bolt Circle: 5.000"

Bore: 1.250"

Bore Type: Square

Hole Size: .531"

Lube Type: Relubable

Overall Dimensions: 5.000" X 5.000"

Width: 1.687"



OEM Number :

BCA/FEDERAL MOGUL: FD-209-RK

FAFNIR: DHU114S209

QUINSTAR: 311007

GREAT PLAINS: 822-209C



Application For:

Case-IH 6650 PIN 3914 & above.

Farmhand-Glencoe YB8500 Yield Builder.

Glencoe 7200; 7400 s/n 3988 & above.

Great Plains Turbo-Chopper, late Turbo-Till, Ultra-Till; Turbo Chisels TC5109-TC5323.

Hesston 2540.

Kuhn Krause 4800.

Kent Mulch-o-vator.

Landoll Soil Master II & III, 275, 1200, 1700, Weatherproofer.

Salford rolling harrow on 570RTS, 575RTS, I-1100, I-1200, I-2100, I-2200, I-4100, I-4200, I-5100; 9800 series rippers.

Steiger 2200 Digger Disc.

White/Oliver 273, 274 discs.

Also fits Ford 242 and McFarlane.


We Can Produce Agricultural Machine Bearing :



Bearing NO. Dimensions(mm) Weight(kg)
D A C F J K H D E
FD209RB 38.7 13.5 42.86 127 127 41.7 6.75 1.86
ST491 44.83 13.5 42.8 127 127 41.7 6.75 1.53
ST491A 45 13.5 42.7 127 127 41.7 6.75 1.52
DHU1-3/4" R-211 45 13.5 54 139.7 139.7 46 8 2.67
FD211RJA 49.21 13.5 49 139.7 139.7 46 8 2.58
FD211RJ 49.21 13.5 49 139.7 139.7 46 8 2.58
FD211RB 55.57 13.5 55.6 139.7 139.7 46 8 2.42
ST740 55.57 13.5 55.6 141.3 141.3 45 7 2.42
ST491B 38.7 42.86 127 127 41.7 6.75 16.7 13.5 1.58
FD209RM DHU1-1/8" S-209 42.86 127 127 41.7 6.75 29.97 16.7 13.5 1.86
