UL32-0015143 Bottom Roller Bearing

19*32*20*23mm UL32-0015143 Bottom Roller Bearing produce with Chrome steel Gcr15 ,we have bearing in stock ,free sample can be provide before order .

item no.:
UL32-0015143
lead time:
3-5 DAYS
product orgin:
China ,Shanghai
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
1000

products details

0015143 UL32-0015143 Textile spinning bearings Specification:

Dimension :

Inner diameter :19mm

Outer diameter:32mm

Height:20mm

Material :Chrome steel Gcr15

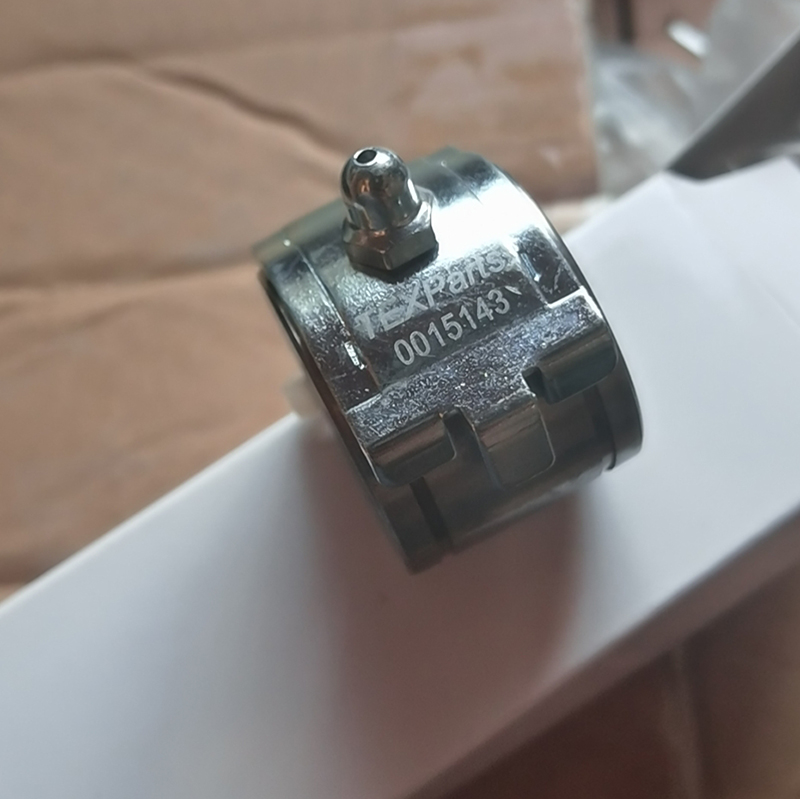

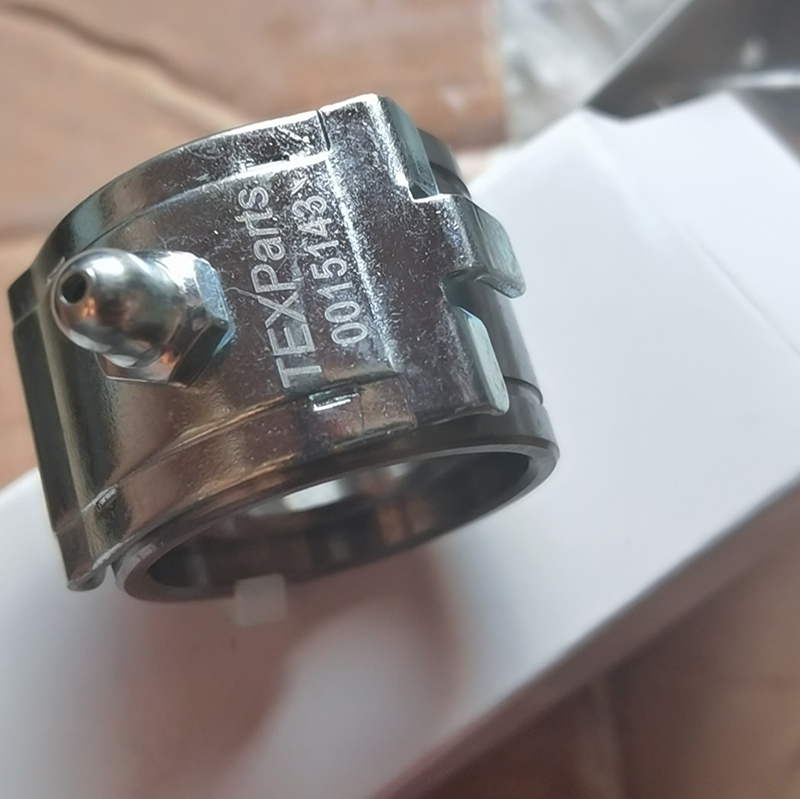

UL32-0015143 Bottom Roller Bearing Pictures:

We can Produce other textile machine bearing for you .

TYPE	d	D	K	D1	WEIGHT
	d	D	K	(Internal flange)
				(Internal flange)
UL28-0003590	16,5 mm	28 mm	-	23,90 mm	0,059
UL30-0007871	18,5 mm	30 mm	-	25,40 mm	0,065
UL30-0003665	18,5 mm	30 mm	-	25,40 mm	0,065
UL30-0028276	18,5 mm	30 mm	-	25,40 mm	0,064
UL32-0013400	19 mm	32 mm	-	26,90 mm	0,079
UL32-0015143	19 mm	32 mm	-	26,90 mm	0,079
UL32-0016548	21 mm	32 mm	-	27,85 mm	0,068
UL32-0019169	18,5 mm	32 mm	-	27,85 mm	0,100
UL32-0023114	16,295 mm	32 mm	32,5 mm.	26,90 mm	0,100
UL36-0014782	18,5 mm	36 mm	-	29,90 mm	0,107
UL36-0016442	21 mm	36 mm	-	29,90 mm	0,125
UL40-0025408 3)	22,984 mm	40 mm	40,5 mm.	32,85 mm	0,135
