V Groove Fence Sliding Gate Wheel With Bolt

V Groove Gate Wheels With Material Steel Q235 or stainless steel and we can do surface with galvanized with silver,yellow,color zinc,long lasting,different size can be provide.

item no.:
HL1V40
lead time:
7-30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou
MOQ:
100

products details

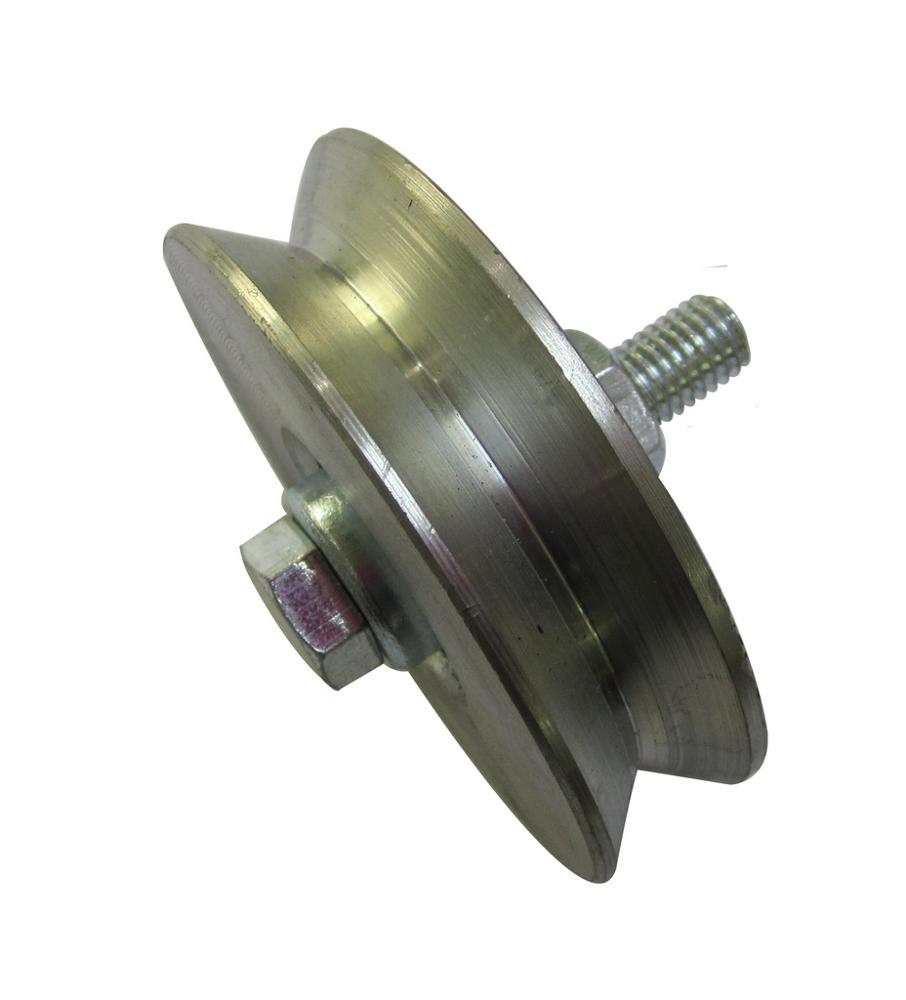

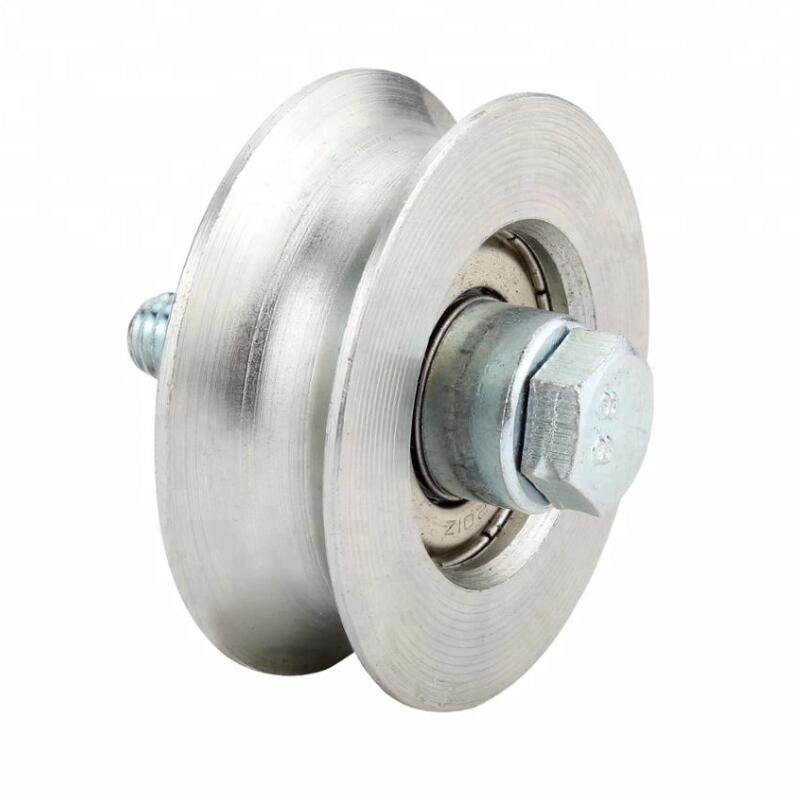

V Groove Fence Sliding Gate Wheel With Bolt Specification

1.With Material: steel Q235 or stainless steel and we can finish surface treatment with yellow zinc plating or silver zin plating .

2.We can produce with wheel diameter with 40mm ,38mm etc and customized size also welcome

4.We can produce with inside with single or double bearings

5.Except V groove wheels ,we can produce sliding gate wheel with U groove and Y groove

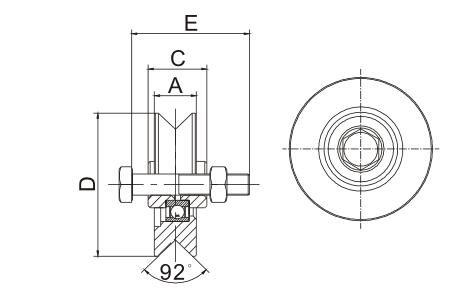

Below Here Is V Groove Gate Wheel Size For Your Reference :

NO.	D mm	A	C	E	WEIGHT(g)
HL1V40	38	11	24	M8*40	85
HL1V50	50	15	26	M8*40	163
HL1V60	58	17	24	M10*55	272
HL1V70	68	20	28	M10*55	443
HL1V80	78	20	28	M10*55	616
HL1V90	88	20	30	M12*60	791
HL1V100	98	22	30	M12*60	1078
HL1V120	118	25	34	M14*70	1815
HL1V140	138	25	44	M16*75	2662
HL1V160	158	30	45	M16*75	4080

Other Type of Sliding Gate Bearing wheels :

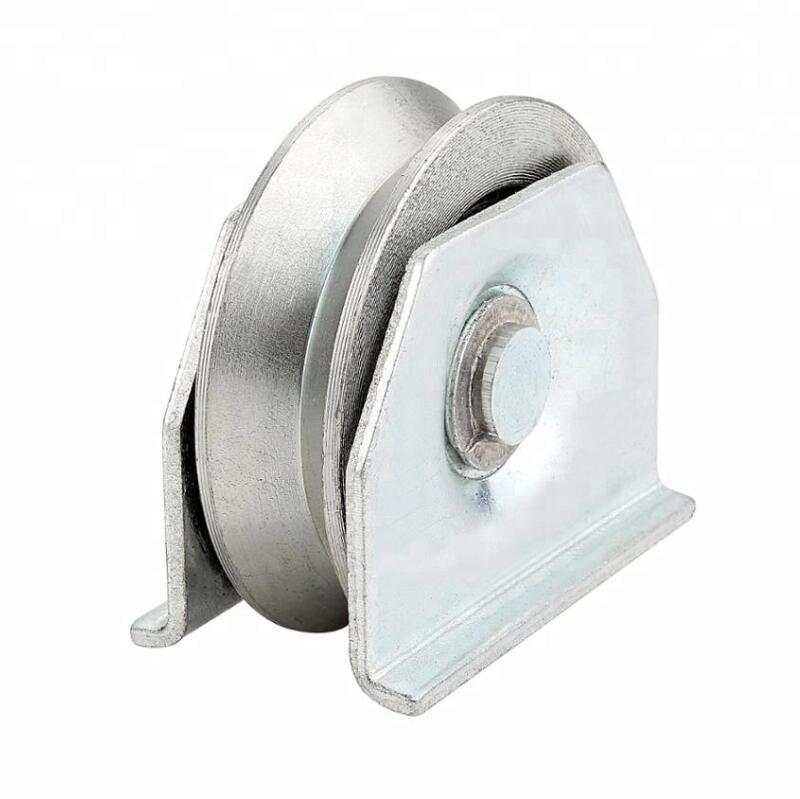

1.sliding gate wheel with exterior bracket

Code no	HT style
Bearings NO	Single or double
Size	30mm-100mm for single bearings 80-120 for double bearings
Groove	Y , U/O,V

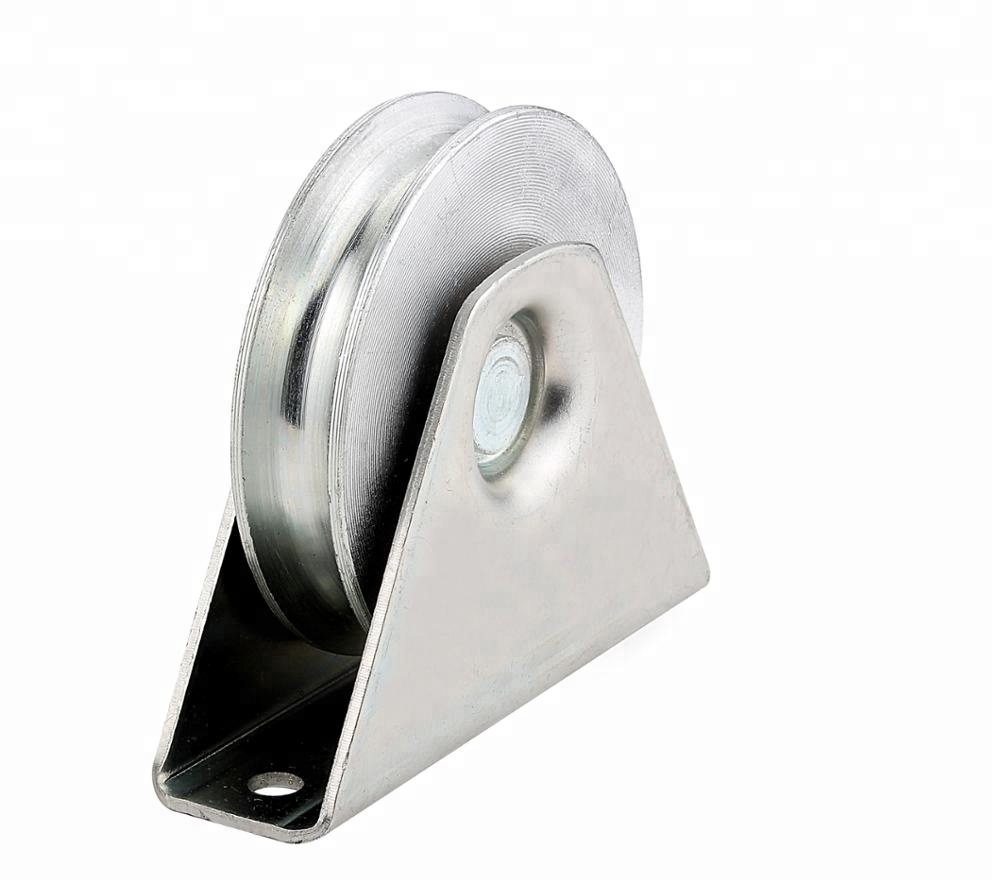

2.Sliding gate wheel with double plates

gate sliding wheels

Code no	HS style
Bearings NO	Single or double
Size	60mm-120mm for single bearings 80-120 for double bearings
Groove	Y , U/O,V

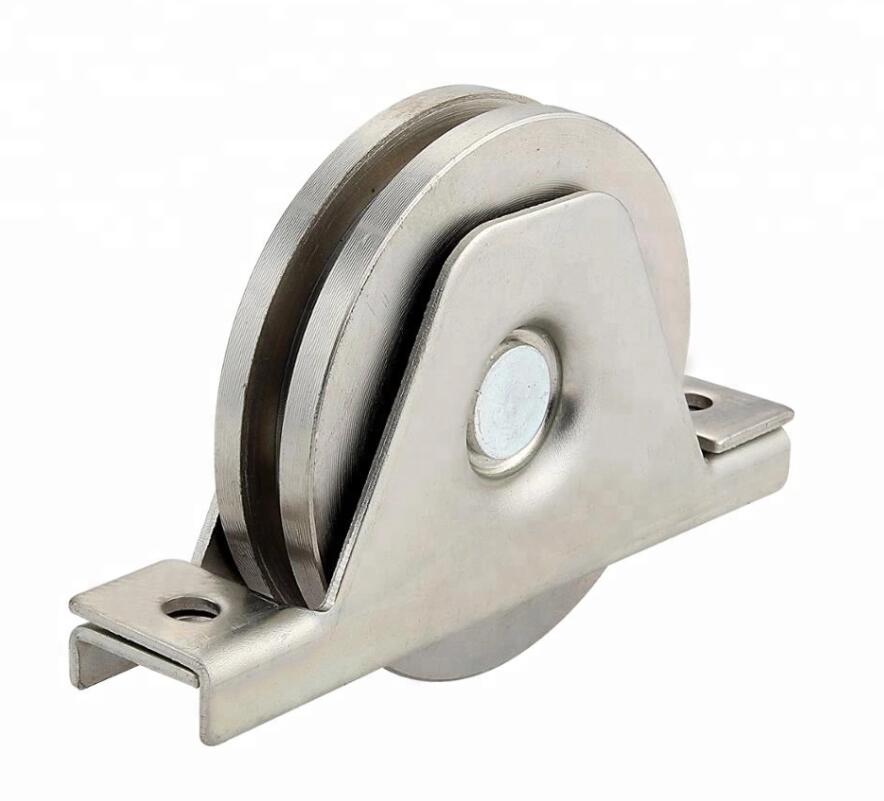

3.Sliding gate wheel with interior bracket

Code no	HD style
Bearings NO	Single or double
Size	50mm-140mm for single bearings 80-200 for double bearings
Groove	Y , U/O,V ,H

4.Sliding gate wheel with bolt

sliding gate wheels price

Code no	HL style
Bearings NO	Single or double
Size	40mm-160mm for single bearings 80mm-200mm for double bearings
Groove	Y , U/O,V ,H

Sliding Gate Roller Wheels Are Widely Used In :

Gate doors

Factory doors

Entrance doors

Warehouse sliding doors

Sliding Gate V Track Packing:

Normally we packed gate wheel in plastic per 2 pcc ,then take it in cartons,finally packing pallet;if you have own requirements ,pls let us know.

heavy duty gate rollers
steel gate rollers
