FD211RM Disc Harrow Bearings

1-1/2" square bore FD211RM Agricultural Bearing with 1-1/2" Square Bore, 5.5" Diagonal Bolt to Bolt Distance can be used for MacFarlane Reel Disc,we can produce this bearing with competitive price and short delivery time for you .

item no.:
FD211RM
lead time:
30 days
product orgin:
China ,Shanghai
shipping port:
Ningbo,Shanghai,Guangzhou,Qingdao
MOQ:
50

products details

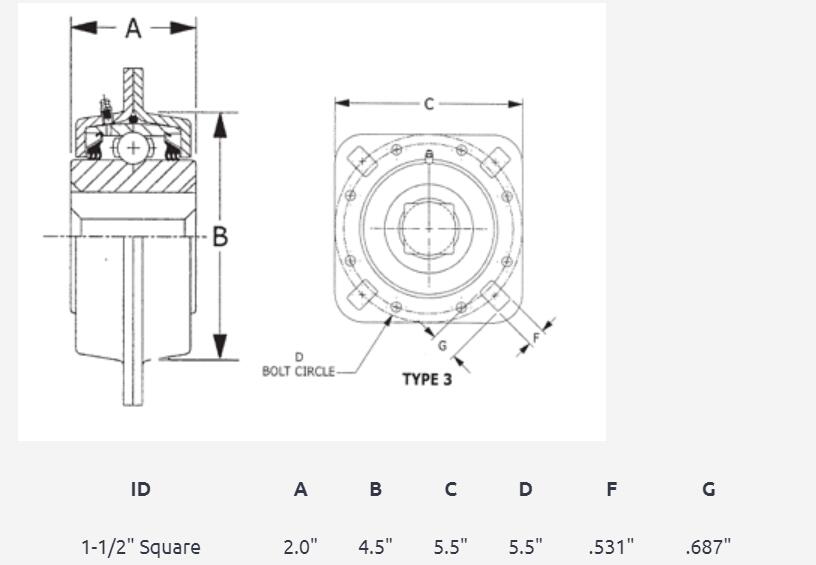

Dimension :

BORE: 1-1/2" Square

BOLT TO BOLT: 5.5"

FD211RM Disc Harrow Bearings

OEM Number:FD211RM ,FD211-1 1/2SQ ,DHU1-1/2S-211,B3587

FD211RM Flange Bearing Application :

For Brillion disc rippers Land Commanders I, II disc gangs.

Kewanee 1200 series discs.

Landoll 7130 harrow.

McFarlane Reel Disc RD4012, RD4014, RD4016, RD4020, RD4025, RD4030, RD4035, RD4044, RD4045 s/n 12947 & up disc gangs.

Precision Planting 3200 harrow.

Wil-Rich harrow.

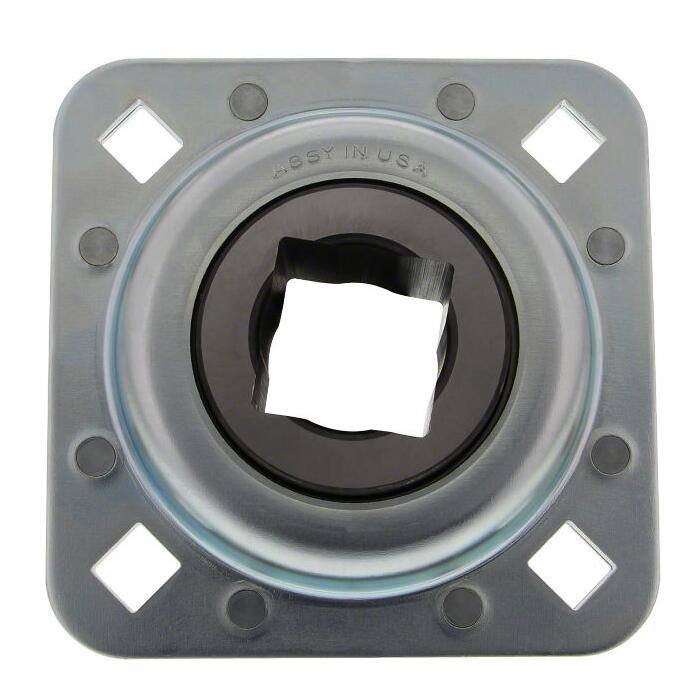

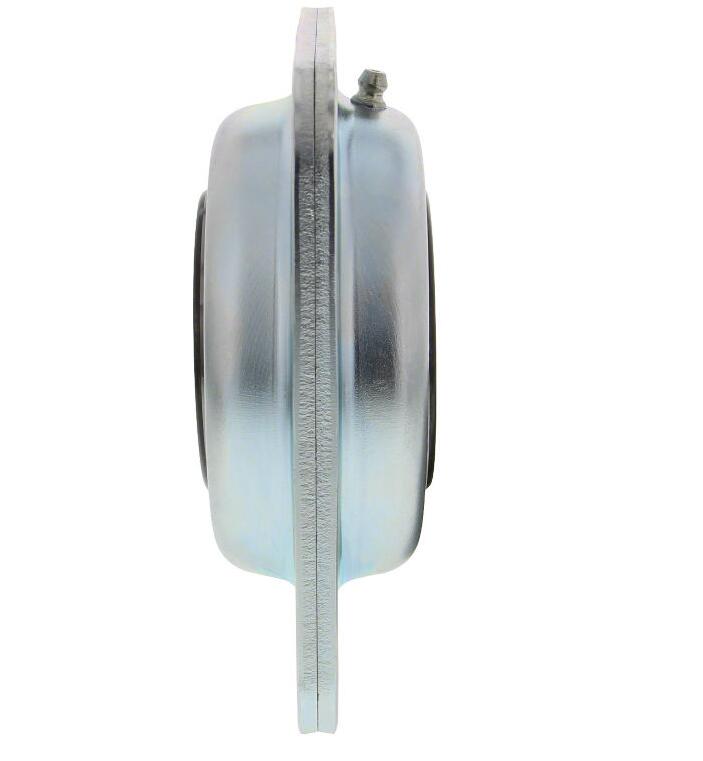

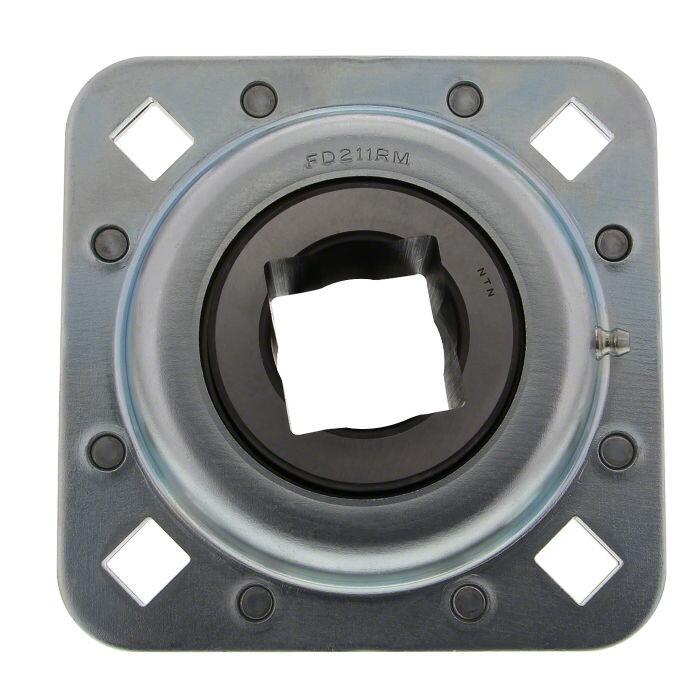

FD211RM , FD211-1 1/2SQ, DHU1-1/2S-211 Bearings Pictures:

We Also Can Produce other high quality Disc Harrow Bearing:

ST211-1 3/4	1–2	1.78	5.5	2.189	1.827	0.354	2.854	4.449	5.5	0.531
ST211-1 3/4	1–2	45.21	139.7	55.6	46.4	9	72.5	113	139.7	13.5
ST211-2 3/16	1–2	2.188	5.5	2.189	1.827	0.354	2.854	4.449	5.5	0.531
ST211-2 3/16	1–2	55.58	139.7	55.6	46.4	9	72.5	113	139.7	13.5
ST211-1 15/16	1–2	1.939	5.5	2.752	1.827	0.354	2.854	4.449	5.5	0.531
ST211-1 15/16	1–2	49.24	139.7	69.9	46.4	9	72.5	113	139.7	13.5
ST740	1	2.188	5.5	2.189	1.827	0.354	2.854	4.449	5.5	0.516
ST740	1	55.58	139.7	55.6	46.4	9	72.5	113	139.7	13.1
ST208-1R5BC	2	1.043	5	1.654	1.378	0.276	2.165	3.622	5
ST208-1R5BC	2	26.5	127	42	35	7	55	92	127
ST209-1 1/8	1–2	1.18	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-1 1/8	1–2	29.97	127	42.5	42.8	7	59.5	97.5	127	13.5
ST209-30S	1–2	1.234	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-30S	1–2	31.35	127	42.5	42.8	7	59.5	97.5	127	13.5
ST209-1 1/4	1–2	1.299	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-1 1/4	1–2	33	127	42.5	42.8	7	59.5	97.5	127	13.5
ST209-40R	1–2	1.609	5	1.673	1.685	0.276	2.343	3.839	5	0.531
ST209-40R	1–2	40.88	127	42.5	42.8	7	59.5	97.5	127	13.5
FD-211-RM	1–2	1.531	5.5	2	1.827	0.354	2.874	4.469	5.5	0.531
FD-211-RM	1–2	38.89	139.7	50.8	46.4	9	73	113.5	139.7	13.5
ST211-40S	2	1.609	5.5	2	1.827	0.354	2.874	4.469	5.5	0.531
ST211-40S	2	40.88	139.7	50.8	46.4	9	73	113.5	139.7	13.5
DHU 40S-211	2	1.609	5.5	2	1.827	0.354	2.874	4.469	5.5
DHU 40S-211	2	40.88	139.7	50.8	46.4	9	73	113.5	139.7
ST208-1N	2	1.024	4.764	1.503	1.378	0.276	2.165	3.622	4.686
ST208-1N	2	26	121	38.18	35	7	55	92	119.02
ST208-1 1/8	2	1.18	4.764	1.503	1.378	0.276	2.165	3.622	4.686
ST208-1 1/8	2	29.97	121	38.18	35	7	55	92	119.02
ST208-1 1/8G	2	1.18	4.764	1.503	1.378	0.276	2.165	3.622	4.686
ST208-1 1/8G	2	29.97	121	38.18	35	7	55	92	119.02
ST208-1 42LTB	2	1.024	4.764	1.654	1.378	0.276	2.165	3.622	4.686
ST208-1 42LTB	2

We have Square Bore Bearings in stock now ,for more information ,pls contact with us at info@bearings-factory.com.
