Track Roller Bearing
home

Roller Bearing

Track Roller Bearing

LFR5201 U Groove Track Roller Bearing

new products

LFR5201 U Groove Track Roller Bearing

12*35*15.9mm Track Rollers With Profiled Outer Ring produce with Chrome steel Gcr15c,we have LFR5201-10-2Z LFR5201-10 KDD.

  • item no.:

    LFR5201
  • lead time:

    3-7 DAYS
  • product orgin:

    China
  • shipping port:

    NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
  • MOQ:

    100
products details

LFR5201-10-2Z Track Rollers With Gothic Arch Groove Specification:

Inner diameter :12mm

Outer diameter :35mm

Height :15.9mm

Material :Chrome steel Gcr15

Dynamic load rating:8400  N

Static load rating:5200  N

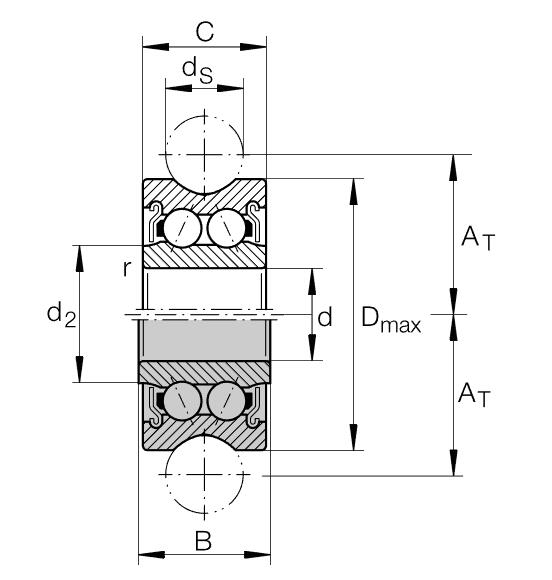

LFR5201-10-2Z bearing dimension

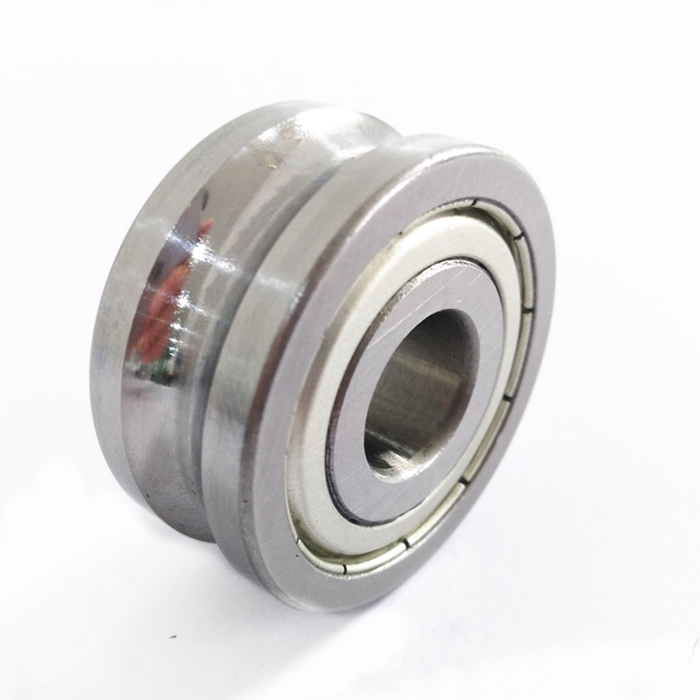

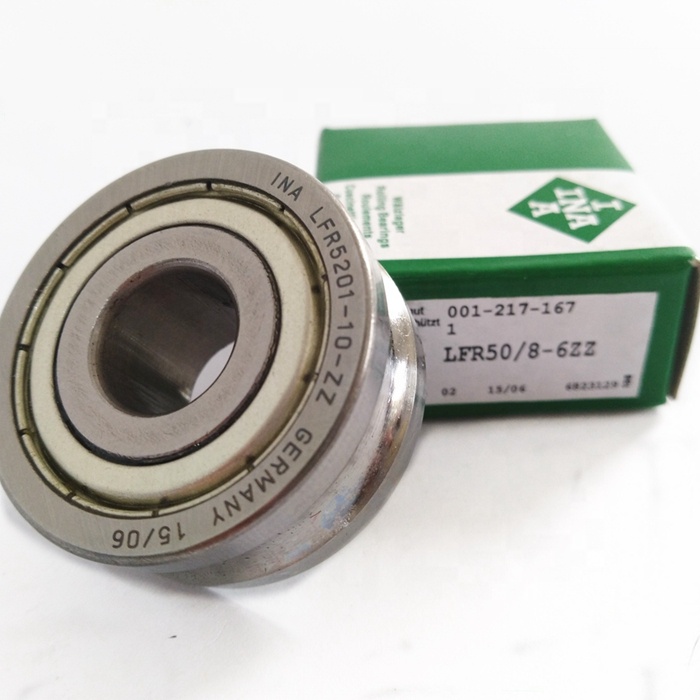

Bearing picture :




We also can produce other track roller bearings :

LFR 50/4 NPP,LFR 50/5-4 KDD,LFR 50/5-4 NPP

LFR 50/5 KDD,LFR 50/5 NPP,LFR 50/8 KDD

LFR 50/8 NPP,LFR 50/8-8 KDD,LFR 50/8-8 NPP
