LR 50/8 NPPU Track Roller Bearings

8MM Bore; 24MM Roller Diameter; 11MM Roller Width; Crowned Roller Surface Profile; Sealed Enclosure; Ball Bearing-Double Row; Relubricatable LR 50/8 NPPU bearings are produce with Chrome steel Gcr15 material ,we have bearing with 563 PCS in stock ,for more informations pls contact with us now.

item no.:
LR 50/8 NPPU
lead time:
3-7 DAYS
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

LR 50/8 NPPU Guide Roller Track Roller Bearing Introduction :

Bore diameter：0.315 Inch | 8 mm

Outer diameter: 0.945 Inch | 24 mm

Width: 0.433 Inch | 11 mm

Weight: 0.027 kg

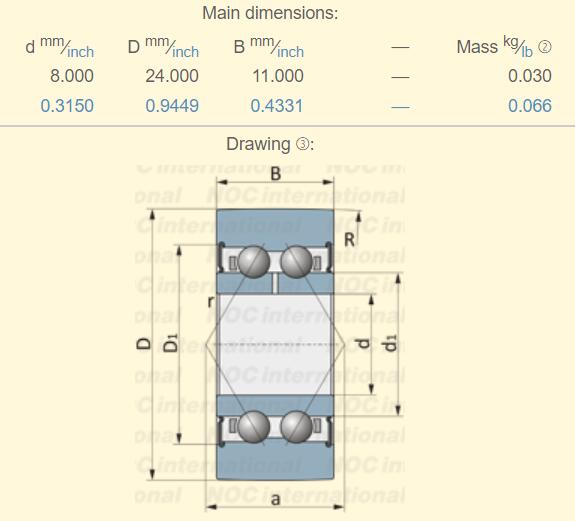

LR 50/8 NPPU Bearings Dimension

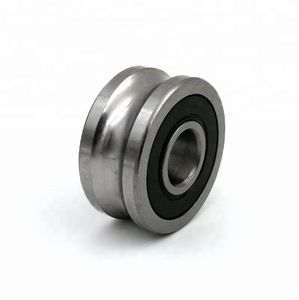

Track Rollers Bearing Picture :

We can produce other track roller for you ,below here is some bearing number for your reference :

Bearing Model	Inside Dia.(mm)	Outside Dia.(mm)	Thickness(mm)	Weight(KG)
LR50/5-2RSR	5	17	7	0.01
LR50/6-2RSR	6	19	9	0.02
LR50/7-2RSR	7	22	10	0.02
LR50/8-2RSR	8	24	11	0.03
LR5000-2RS	10	28	12	0.03
LR5001-2RS	12	30	12	0.03
LR5002-2RS	15	35	13	0.05
LR5003-2RS	17	40	14	0.07
LR5004-2RS	20	47	16	0.12
LR5005-2RS	25	52	16	0.15
LR5006-2RS	30	62	19	0.25
LR5007-2RS	35	68	20	0.30
