PEER Square Bore Farm Line Bearings W210PPB6

new products

PEER Square Bore Farm Line Bearings W210PPB6

 Square hole bearing W210PPB6 with Non-Relubricable, Two Triple Lip Seals, 1.125" ID, 3.5433" Spherical OD can be widely used for PEER agricultural  parts .

  • item no.:

    W210PPB6
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details


Bearings W210PPB6 Introduction :


Bearing number : W210PPB6

Size (mm) : 28.6x90x36.53

Bore Diameter (mm) : 28,6

Outer Diameter (mm) : 90

Width (mm) : 36,53


Basic dynamic load rating (C) - 39,9 kN

Basic static load rating (C0) - 23 kN

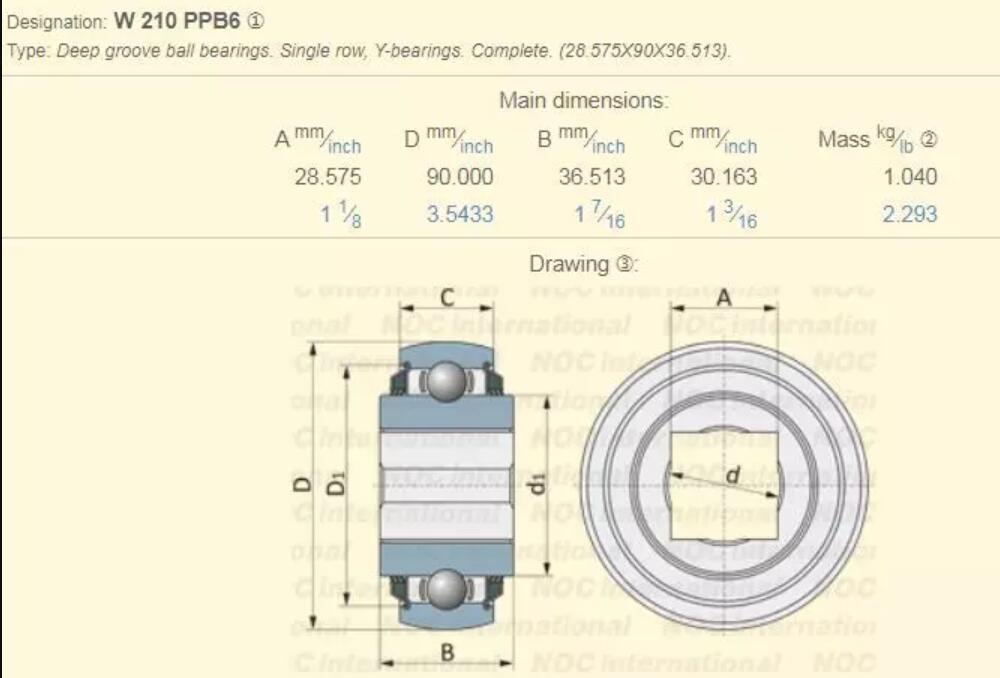

Bearings W210PPB6 Size



BEARING UNIT W210PPB6 ALSO KNOW AS:

BCA/FEDERAL MOGUL: DS210TT6

FAFNIR/TORRINGTON: W210PPB6

LINK BELT: 18S2-210E3

NTN: 2AS10-1-1/8

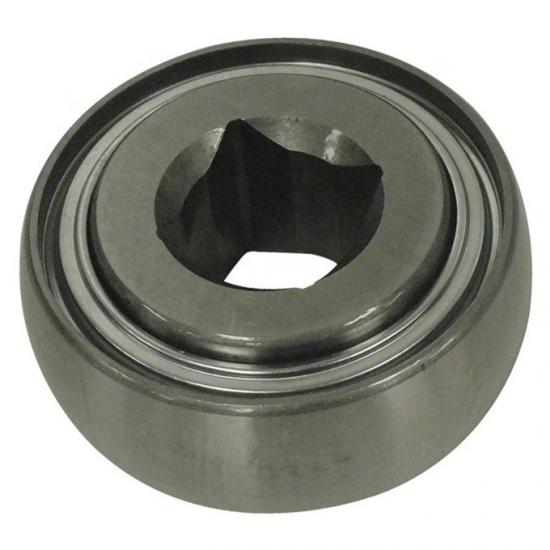

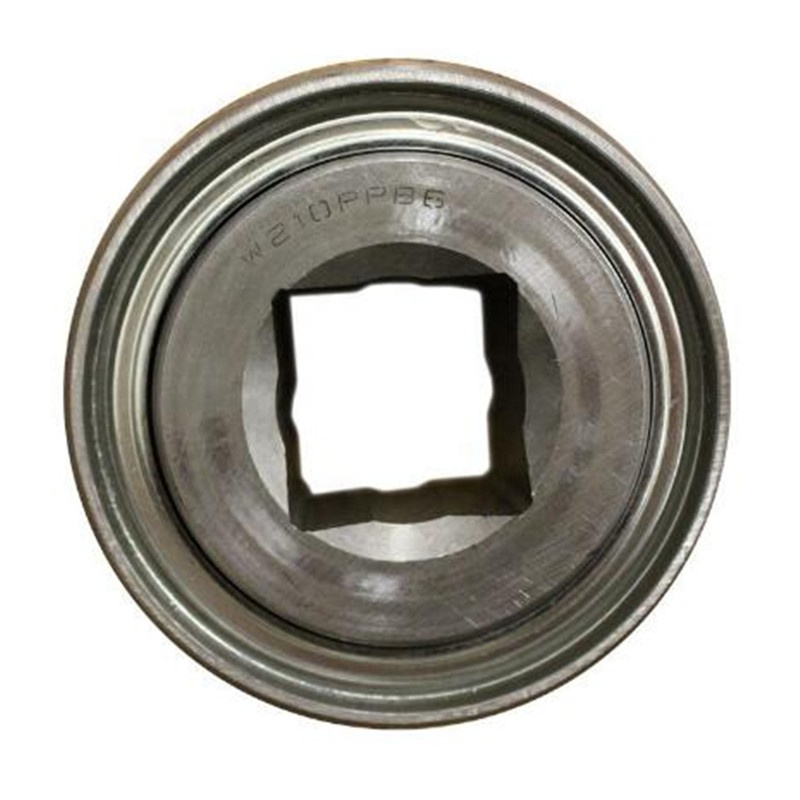

Bearings W210PPB6 Picture :

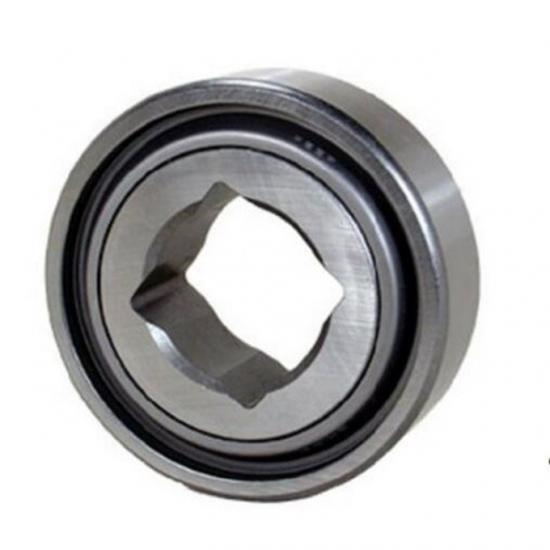

AG Bearings W210PPB6
Bearings W210PPB6
We can produce other square bore bearings as below :

Bearings No.  Dimensions(mm) Weight
H d1 D C B (kg)
W208PPB13 22.97 24 80 18 36.53 0.69
W208PPB6 26 28 80 18 36.53 0.652
W208PP6 26 32 80 18 36.53 0.662
W208PPB5 29.97 32 80 18 36.53 0.59
W208PPB8 29.97 32 80 30.18 36.53 0.735
W208PP5 29.97 32 80 18 36.53 0.6
W208PP20 29.97 32 80 18 36.53 0.681
W208PP8 29.97 32 80 30.18 36.53 0.709
W209PPB5 33 32 85 30.18 36.53 0.945
W210PP4 29.97 32 100 30.18 30.18 1.049
W210PPB6 29.97 32 90 30.18 36.53 0.733
W210PPB4 29.97 32 90 33.34 33.34 0.845
W211PPB3 38.89 42 100 33.34 33.34 1.208
W211PP3 38.89 42 100 33.34 33.34 1.271
W211PP5 38.89 42 101.6 44.45 44.45 1.302




related products
Hexagonal Bearing

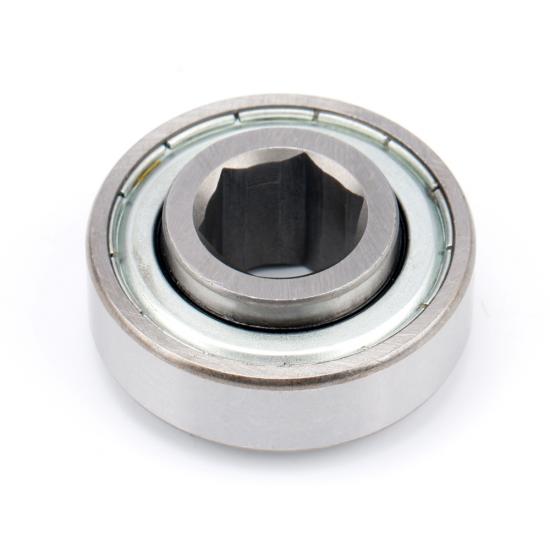

9/16" Agricultural Hexagonal Bearing 202KRR3

202KRR3 Agricultural Hexagonal Bearing with bore 9/16" are produce with Chrome steel.

Farm Bearing 205KRRB2

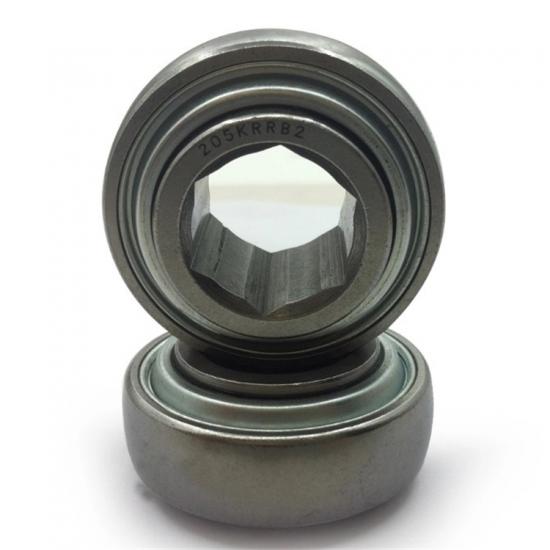

7/8" Hex Bore Farm Bearing 205KRRB2

Hex Bore Agricultural Machinery Bearing 205KRRB2 are with bore size  7/8" ,and this bearing can be used for John Deere Farm Machinery.

Peer Seeder Bearing

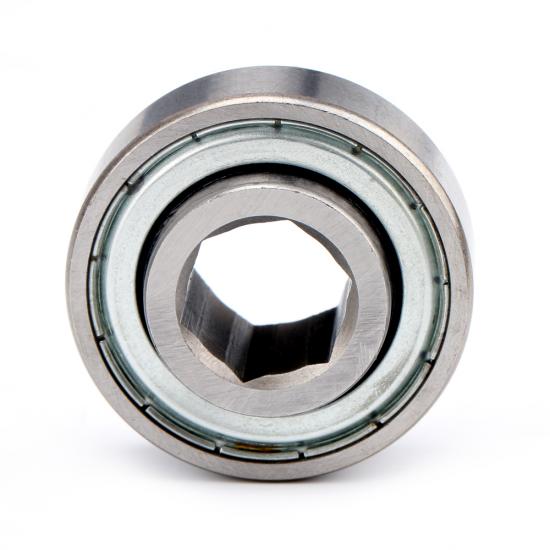

11/16" Hex Bore PEER Seeder Bearing 204KRRB2

PEER Agricultural Bearing 204KRRB2 with Hex Bore 11/16" are produce with Chrome steel material and widely used for PEER SEED machinery

NTN Hex Bore Bearing
1-1/8" NTN Hex Bore Bearing 2AH07-1.1/8

NTN Bearing 2AH07-1.1/8 is same as bearing 207KRRB9 with hex bore ,and these bearings are widely used for Agricultural machiery parts such as John Deere ,Case-IH.

Hex Bore Ag Bearing

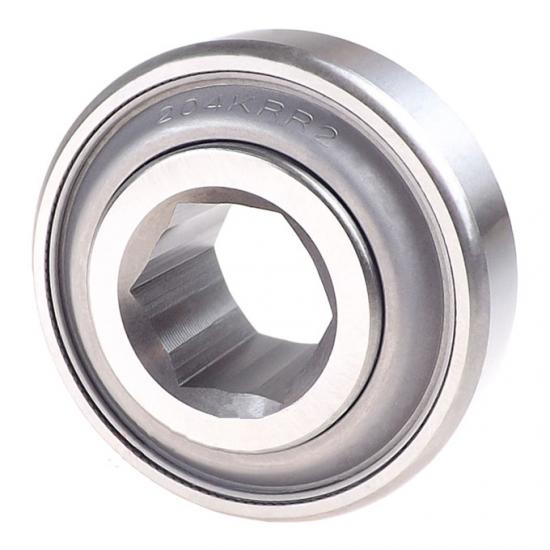

11/16" Hex Bore Ag Bearing 204KRR2

Ag Bearing 204KRR2 are with hex bore 11/16" ,and this bearing also know as HPC011GP,11KB204N,1AH04-11/16.

1 Square Bore Bearing

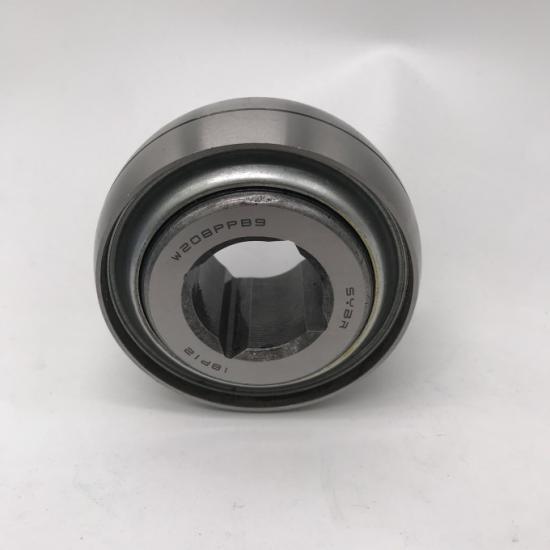

1" Square Bore Farm Bearings W208PPB9
