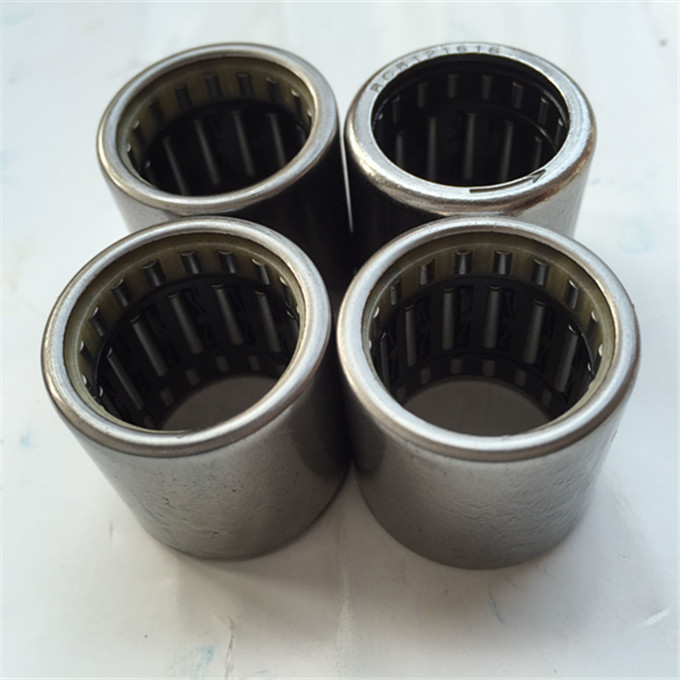

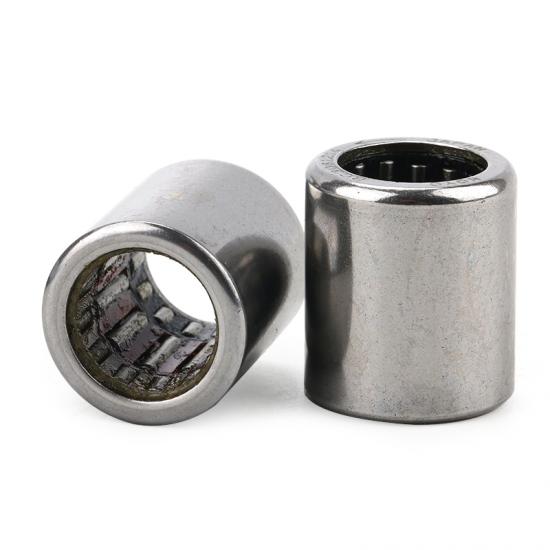

RCB-061014 Roller Clutch and Bearing

RCB-061014 Roller Clutch Bearing Specification:

d: 9.525mm

D: 15.875mm

B: 22.22mm

M: 0.015kg

Basic dynamic load rating: 675KN

Basic static load rating: 91KN

Oil Rotate speed: 2000 r/min

Grease Rotate speed: 1500r/min

RCB Needle roller bearings NO.:

Needle bearings RCB061014 RCB-061014-FS Roller Clutch and Bearing use a roller style rolling element to reduce friction of rotating surface and are more compact as the clearance has been reduced. Typically, the needle bearings consist of inner race, needle shaft, which orients the needle roller and an outer race. Needle bearings are primarily used in engine components, such as rocker arm pivots, pumps, compressors and transmissions.

And we have below items in stock :

Needle bearings RCB061014 RCB-061014-FS Roller Clutch and Bearing use a roller style rolling element to reduce friction of rotating surface and are more compact as the clearance has been reduced. Typically, the needle bearings consist of inner race, needle shaft, which orients the needle roller and an outer race. Needle bearings are primarily used in engine components, such as rocker arm pivots, pumps, compressors and transmissions.

One Way Bearing Features :

• Torque can be transmitted by either the housing or the shaft.

• Torque is positively transmitted by rollers that wedge against interior ramps.

• Transition from free motion to lock occurs with minimal backlash or lost motion.

• Available as clutch-only or as a clutch and bearing assembly.

• Clutch-only units should be used with external radial support to hold the shaft and housing.
