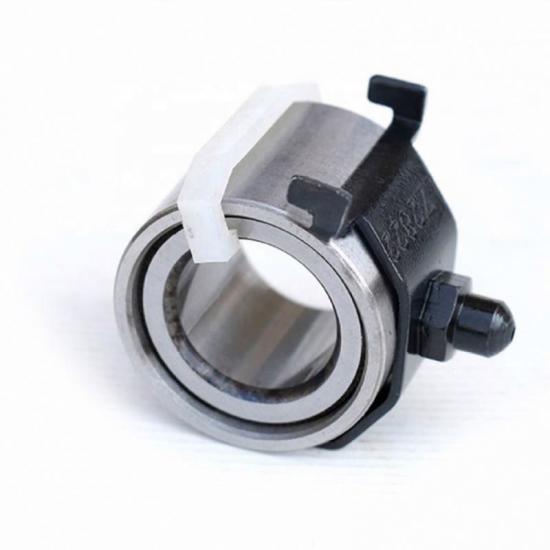

UN3225 Bottom Roller Bearing

19*32*20*23mm UL32-0015143 bottom roller bearing can used for textile machines.

item no.:
UN3225
lead time:
7 days
product orgin:
China ,Shanghai
shipping port:
Guangzhou
MOQ:
100

products details

Textile Machinery Bottom Roller Bearing UN3225 UN 3225 Specification :

Bearing No.:UN 3225

Bore Size:19 mm

Outside Diameter:32 mm

Thinckess:20 mm

Bottom Roller Bearing Number:

Bottom roller bvearing

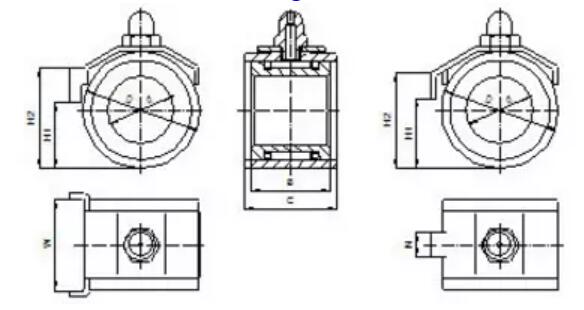

Model No	d(mm)	D(mm)	b(mm)	B(mm)
UN2813	14.2	28	16.6	23		UL112-28
UN2803	16.5	28	19	22	UW2128.20
UN2804	16.5	28	19	22	UWL2800
UN2809	16.5	28	19	22	UW2128.22
UN2821	16.5	28	19	22	UW2128.22
UN2810	16.5	28	19	22	UW2128.22
UN2814	16.5	28	19	23		UL2528-0000417
UN2822	16.5	28	19	23		UL2800-00417
UN3229	16.5	32	19	23
UN2815	16.5	28	23	23		UL2800-10080
UN3001	16.5	30	19	23
UN3203	17	32	22	25
UN3204	17	32	22	25
UN3003	18.5	30	19	22	UWL3000	UL30-0007871
UN3209	19	32	20	23	UW2132.22
UN3230	19	32	20	23	UW2132.22
UN3210	19	32	20	23	UWL3200
UN3211	19	32	20	23	UW2132.20
UN3224	19	32	20	23
UN3225	19	32	20	23
UN3233	19	32	20	24		UL3200-00421
UN3216	24	32		22		F-18636

Bottom Roller Bearing Application:

Bottom roller bearings are used for supporting bottom roller in ring spinning frames & speed frames of textile industries. Every bearing is ground to strict quality norms which ensures accurate running of the bearing.with ‘m’section nylon cage.;these bearings can be found in hydroelectric generators ,vertical motors ,propeller axle of vessels ,tower cranes and squeezing presses
