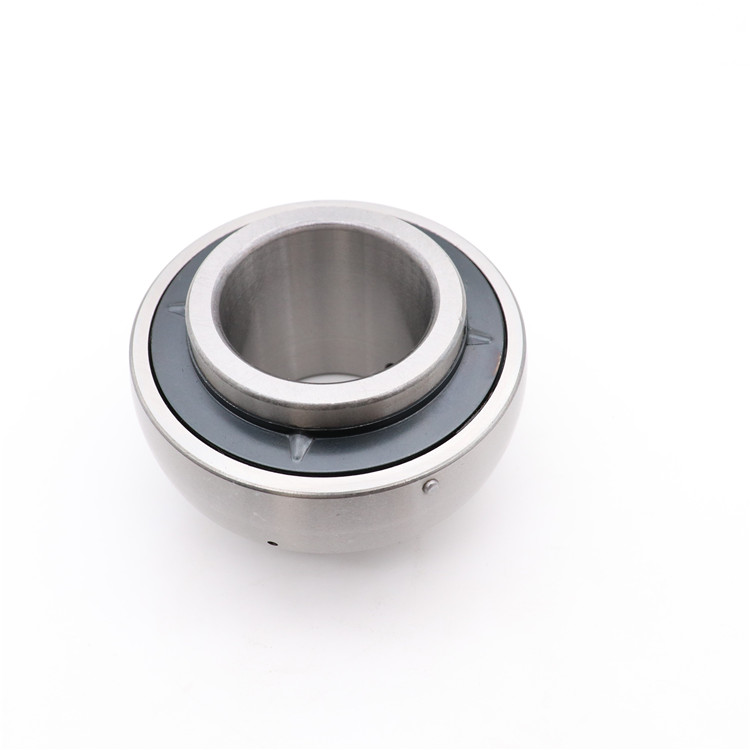

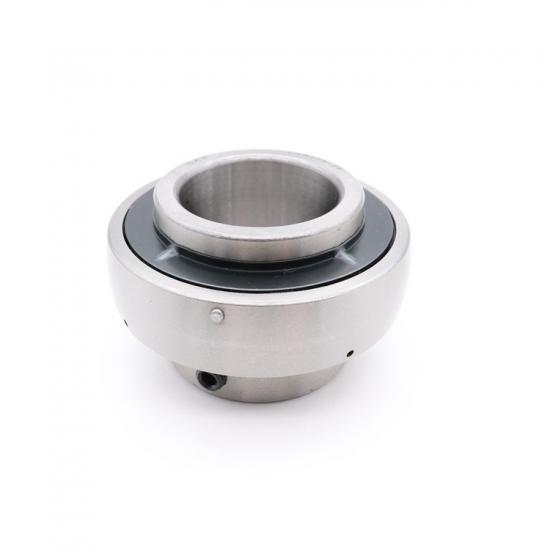

UC202-10 Insert Ball Bearing

5/8*40*14mm UC202-10 bearings are produce with Chrome steel Gcr15 , we have this bearings with 597 PCS in stock now .

item no.:
UC202-10
lead time:
3 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou,Shanghai
MOQ:
100

products details

5/8" UC202-10 Bearing Insert Mounted Description：

Material : Chrome steel Gcr15 ,we also can produce with stainless steel .

Inner diameter ： 5/8

Outer diameter : 1.8504

Inner ring bore :1.2205

Outer ring bore :0.6693

With 2 sides rubber seals

Load Rating (KN)：

Dynamic Cr = 12800

Static Cor = 6650

OEM Number :

AMI	UC202-10
BROWNING	VS-210
DODGE	INS-SC-010
FAFNIR	GY1010KRRB
HUB CITY	YW250-5/8
IPTCI	UC202-10
LINK BELT	UG210NL
NTN	UC202-010D1
SKF	YAR202-010
SEAL MASTER	2-5/8 INSERT

We can produce other UC Series Bearings ,below here is part of our catalogue for your reference :

Bearing No.	Shaft Dia		Dimensions(mm)/(in.)								Basicload rating(N)		Mass(kg)
	d		D	B	C	S	S1	G	h	ds	Dynamic Cr	Static Cor	UC
	(in.)	(mm)	D	B	C	S	S1	G	h	ds	Dynamic Cr	Static Cor	UC
UC202S		15	40	27.4	14	11.5	15.9	4.2	3.5	M5X0.8	9550	4780	0.12
UC202-10S	5/8		40	27.4	14	11.5	15.9	4.2	3.5	10-32UNF	9550	4780	0.12
UC203S		17	40	27.4	14	11.5	15.9	4.2	3.5	M5X0.8	9550	4780	0.11
UC203-11S	11/16		40	27.4	14	11.5	15.9	4.2	3.5	10-32UNF	9550	4780	0.11
UC204-12	3/4		47	31	16	12.7	18.3	4.7	4.4	1/4-28UNF	12800	6650	0.19	0.20
UC204		20	47	31	16	12.7	18.3	4.7	4.4	M6X1	12800	6650	0.17	0.18
UC205-14	7/8		52	34	17	14.3	19.7	5.5	4.3	1/4-28UNF	14000	7880	0.23	0.26
UC205-15	15/16		52	34	17	14.3	19.7	5.5	4.3	1/4-28UNF	14000	7880	0.22	0.25
UC205		25	52	34	17	14.3	19.7	5.5	4.3	M6X1	14000	7880	0.21	0.24
UC205-16	1		52	34	17	14.3	19.7	5.5	4.3	1/4-28UNF	14000	7880	0.20	0.23
UC206-18	1-1/8		62	38.1	19	15.9	22.2	5.5	5	1/4-28UNF	19500	11200	0.34	0.38
UC206		30	62	38.1	19	15.9	22.2	5.5	5	M6X1	19500	11200	0.32	0.36
UC206-19	1-3/16		62	38.1	19	15.9	22.2	5.5	5	1/4-28UNF	19500	11200	0.31	0.35
