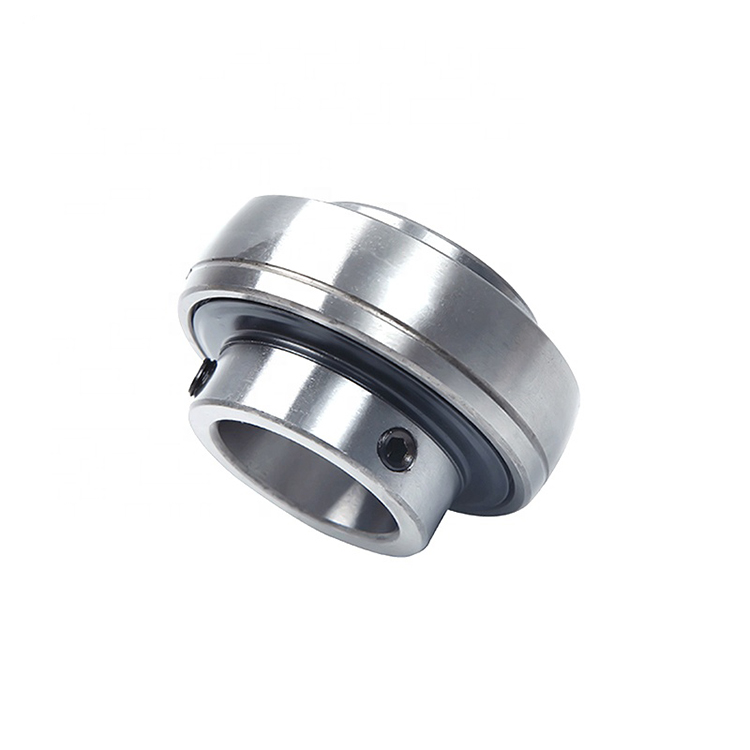

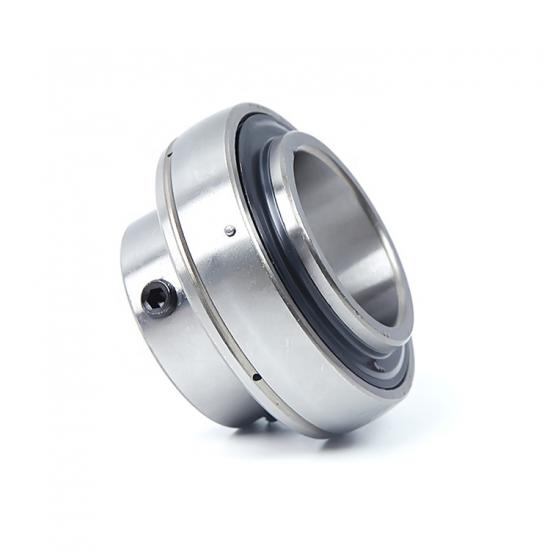

UC202 Insert Ball Bearing

15*47*31mm UC202 Mounted Bearing produce with Chrome steel can use for agricultural machinery part.

item no.:
UC202
lead time:
3 DAYS
product orgin:
China ,Shanghai
shipping port:
Ningbo ,Shanghai,Guanzhou,Shanghai
MOQ:
100

products details

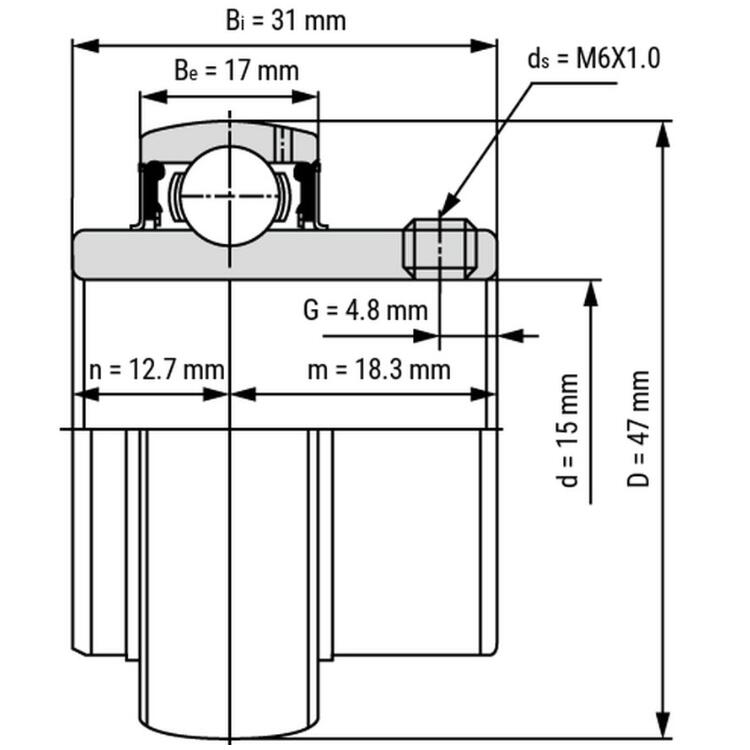

15mm Round Bore UC202 Bearing Insert Description :

Material:Chrome steel

Inner diameter: 15mm

Outer diameter: 47mm

Inner ring height: 31mm

Outer ring heidth: 17mm

Dynamic load rating Cr: 56937 N

Static load rating Cor: 29358 N

Weight:0.19KGS

Inch Dimension: 0.6250 in ID, 1.8504 in OD, 1.2200 in Width

We Also Can Produce With UC202-9 ,UC202-10 insert bearing.
