Hex Bore Agricultural Bearings

new products

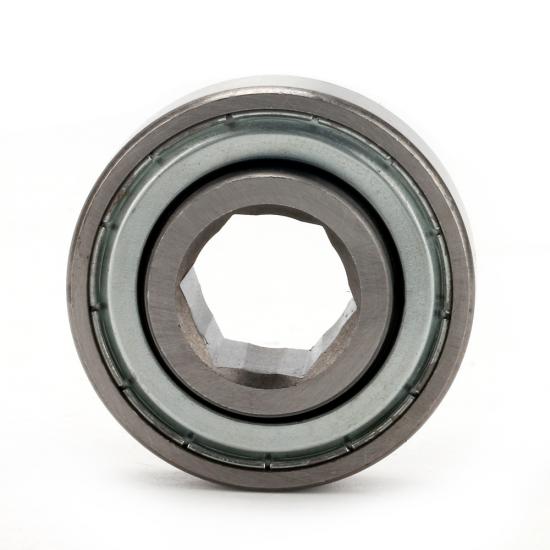

205KRRB2 Hex Bore Agricultural Bearings

7/8" hex bore bearing 205KRRB2 with Chrome steel Gcr15 can be used in John Deere Planters.

  • item no.:

    205KRRB2
  • lead time:

    30 days
  • product orgin:

    China ,Shanghai
  • shipping port:

    Ningbo,Shanghai,Guangzhou,Qingdao
  • MOQ:

    100
products details

205KRRB2 Bearing  Introduction :



205KRRB2 BEARING DRAWING



DIMENSIONS:

BORE: 7/8" Hex

O.D. 2.04" Curved

IR Width: 1"

OR Width: .59"

Other OEM NO. :

FAFNIR: 205KRRB2

BCA: HPS014GP

John Deere: AA22097, JD9260

IHC: 195293C

Kinze: G2-10003

Hex bore bearing 205KRRB2 can be used for John Deere 7000 - 7300 Planters.

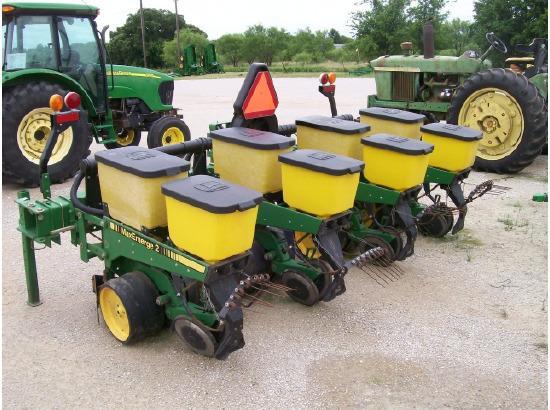

 John Deere 7000 - 7300 Planters


ZZ BEARING is a agricultural machine factory,we can produce other farm bearings :


HEX BORE BEARING TYPE

Bearing Number Type Hex Shaft Size A D Bi Be Load Ratings N Wt.
mm mm mm mm Dynamic Static kg
205KPP2 3 7/8" 22.25 52 25.4 15 3150 1610 0.213
205KRR2 1 7/8" 22.25 52 25.4 15 3150 1610 0.2
205KPPB2 4 7/8" 22.25 52 25.4 15 3150 1610 0.213
205KRRB2 2 7/8" 22.25 52 25.4 15 3150 1610 0.2
206KPP4 3 1" 25.425 62 26.924 16 4370 2320 0.213
G206KPPB4 4 1" 25.425 62 24 18 4370 2320 0.213
206KPPB5 4 1" 25.425 62 26.924 16 4370 2320 0.213
206KRR6 1 1" 25.425 62 24 16 4370 2320 0.34
206KRRB6 2 1" 25.425 62 24 16 4370 2320 0.34
G207KPPB2 4 1 1/8" 28.6 72 37.694 19 5770 3150 0.499
207KRRB9 2 1 1/8" 28.6 72 37.694 17 5770 3150 0.454
207KRRB12 2 1 1/8" 28.6 72 25 17 5770 3150 0.395
SL53-014-2T Special 7/8" 22.225 53.086 19.4 18.288 3150 1610 0.174
