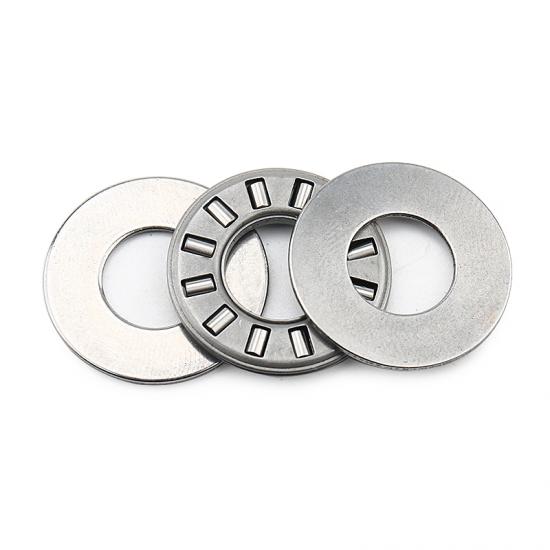

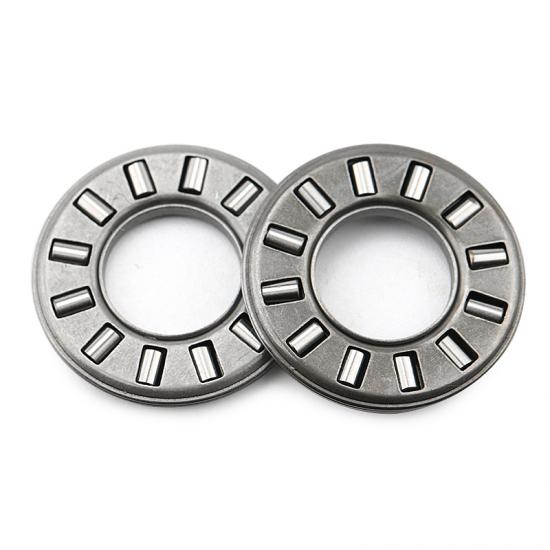

TRD-3244 Thrust Roller Bearing

1-3/4 * 2-1/2 *5/64 inch NTA-2840 Bearing ,we have this bearings in stock now .

item no.:
TRD-3244
lead time:
7 days
product orgin:
China
shipping port:
NINGBO ,GUANGZHOU ,QINGDAO,SHANGHAI
MOQ:
100

products details

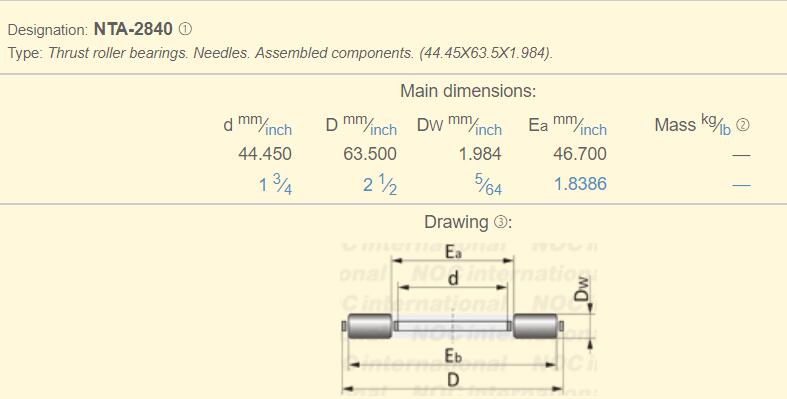

NTA-2840 Thrust Needle Roller Bearing Specification :

Inside Diameter :1.750" / 44.450 mm
Outside Diameter :2.500" / 63.500 mm
Thickness :0.0781" / 1.984 mm
Material :Chrome steel Gcr15

NTA2840 thrust needle roller can used for textile machinery

Thrust roller bearings

Interchangable Replacement No.:
Koyo Bearing:NTA-2840
Torrington Bearing:NTA-2840
INA Bearing:TC2840

We can Produce Other Thrust Bearing Assembly Washer :

Shaft Diameter	Bearing Designation	Boundary Dimentions			Washers Thickness						Basic Load Rating		Limiting Speed
											Cr Dynamic	Cor Static
		Dc1	Dc	Dw	TRA	TRB	TRC	TRD	TRE	TRF	Cr(N)	Cor(N)	Greasc
6.35	NTA411	6.35	17.45	1.984	0.8	1.6	2.4				4114	9163	28000
7.92	NTA512	7.92	19.5	1.984	0.8	1.6					4670	11164	25000
9.52	NTA613	9.52	20.62	1.984	0.8	1.6	2.4				4848	12188	23000
12.7	NTA815	12.7	23.8	1.984	0.8	1.6	2.4				5738	16280	19000
14.27	NTA916	14.27	25.4	1.984	0.8		2.4				6183	18281	18000
15.88	NTA1018	15.88	28.58	1.984	0.8	1.6	2.4	3.2	4		7072	22551	16000
19.05	NTA1220	19.05	31.75	1.984	0.8	1.6	2.4	3.2	4		7873	27088	14000
22.22	NTA1423	22.22	36.5	1.984	0.8	1.6	2.4	3.2			10453	40966	12000
22.22	NTA1427	22.22	42.85	1.984		1.6	2.4	3.2			15257	68944	10000
25.4	NTA1625	25.4	39.67	1.984	0.8	1.6	2.4	3.2	4		10764	43902	11000
28.58	NTA1828	25.58	44.45	1.984	0.8	1.6	2.4	3.2			13522	60938	9800
31.75	NTA2031	31.75	49.21	1.984	0.8	1.6	2.4	3.2	4	4.8	16431	80954	8800
34.92	NTA2233	34.92	52.37	1.984	0.8	1.6	2.4	3.2	4	4.8	17392	89405	8200
38.1	NTA2435	38.1	55.5	1.984	0.8	1.6	2.4	3.2	4	4.8	18904	102304	7700
44.45	NTA2840	44.45	63.5	1.984	0.8	1.6	2.4	3.2	4	4.8	20639	119651.2	6900
